Cut to size at customers' need !

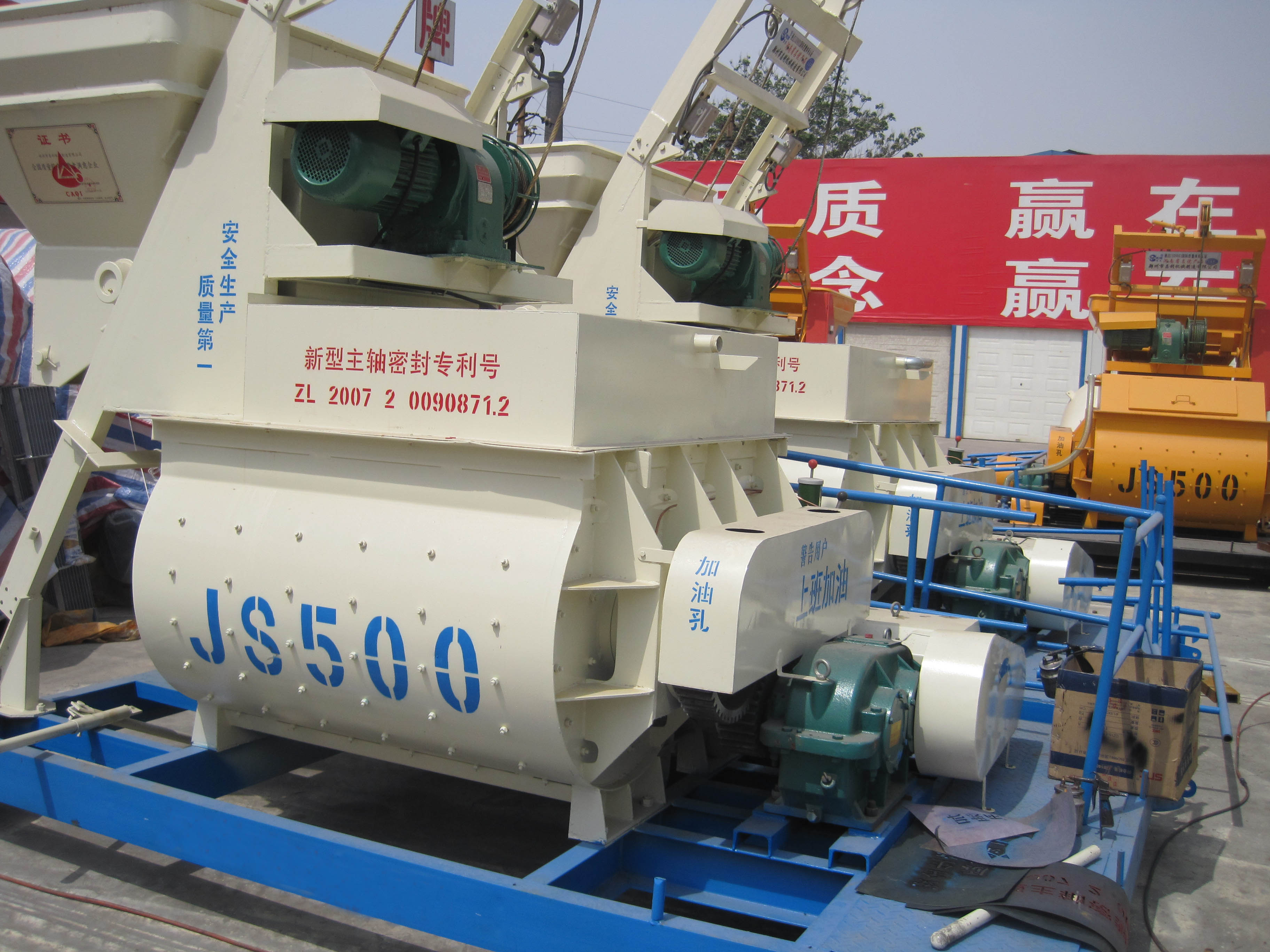

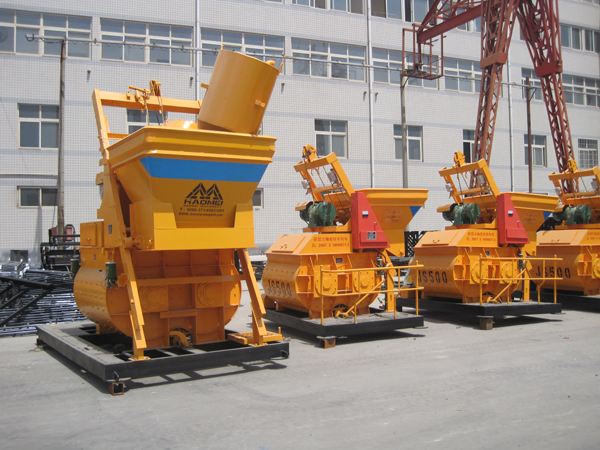

Add to Product FavoritesJS500 Concrete Mixers is a small twin shaft horizontal forced type mixer. which usually equipped with a skip hoist as well as a work platform and outriggers. It mix 500 liters of concrete mix per batch and can work independently or form a small concrete batching plant with other components. It can mix dry hard concrete, plastic concrete, flowing concrete, light weight aggregate concrete and various mortar, it is a high-efficiency machine with wide application. It has dual superiorities of working solely or forming simple concrete mixing plant with PLD series batching machine, and can also mixer for HZS25 concrete batching plant. The JS500 twin-shaft mixer is designed to meet the small batch concrete production requirements of the ready mix and precast industry.
Specification |
Unit |
Value |
Discharging Volume |
L |
500 |
Charging Volume |
L |
800 |
Mixer Capacity |
m3 |
0.5 |
Lubrication System |
Brand |
Choosed |
Reducer |
Brand |
Choosed |
Aggregate Size |
mm |
60/80 |
Aggregate Compartments |
Quantity |
4 |
Working Circle |
S |
60S |
Mixer Motor Power |
KW |
18.5 |
Mixing Speed |
r/min |
35 |
Mixing Blade |
Quantity |
2x7 |
Lifting Motor Power |
KW |
5.5 |
Pump Motor Power |
KW |
0.75 |
Weight |
KG |
1500 |
Dimensions |
mm |
3030x2300x2680 |
Excellent mixing performance
Wear-resisting lining board
Shaft-end sealing technology
Multiple protection devices
Heavy-duty design, easy to operate and low noise.
This concrete mixer can be used to mix stiff-consistency concrete, semi-stiff-consistency concrete, light weight aggregate concrete and so on.Features of JS500 Concrete Mixers:
1. As a miniature double-horizontal-shaft forced type concrete mixer, this concrete mixing machine features short mixing time, good homogeneity and reliable operation.
2. Shaft tip is sealed by floating-ring, which is reliable and easy to maintain and replace.
They are widely used to produce dry hard concrete, plastic concrete, flow concrete, light aggregate concrete, various mortars, etc. Suitable for all kinds of big, medium and small precast concrete plant;
1. Standard seaworthy container 20 GP or 40 GP ,40 HQ according to configuration ;
2. With wires for fastening the machine and frame structure inside the container ;
3. The electric items and installation components packed with strong and standard packages.
