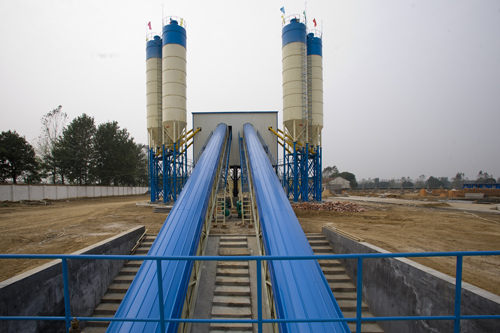

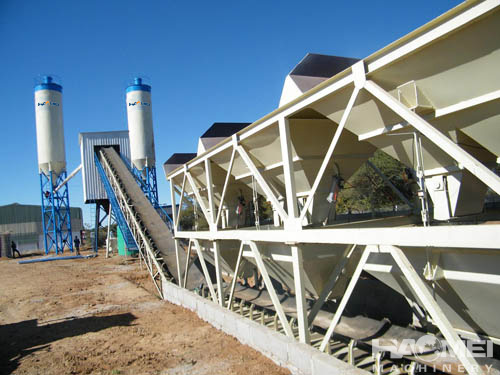

Stationary Concrete Plants Stationary Concrete Batching Plants are often composed of huge twin shaft mixers that are designed to work at full capability, efficiency and reliability for a variety of large scale and high-quality concrete production. Stationary concrete production equipment is built to offer maximum rated production capacity, work long hours, and are yet boast immense flexibility to be used for several projects – especially massive infrastructural and precast concrete projects.
Stationary concrete batching plants use concrete to lay the foundation, then fix the equipment on the foundation. Commercial concrete batching plants generally use stationary batching plants, cause they do not migrate frequently.
The stationary batching plant is more efficient than the mobile batching plant and the output is much greater. The stationary batching plant has a low failure rate so that the equipment can use a long time.
HZS60 | HZS90 | HZS120 | HZS180 | HZS240 | ||
Theoretical production(m3/h) | 60 | 90 | 120 | 180 | 240 | |
Concrete mixer | Type | JS1000 | JS1500 | MAO3000/2000 | MAO4500/3000 | MAO6000/4000 |
Power(KW) | 18.5 | 65.5 | 74 | 110 | 150 | |
Discharging capacity (L) |
1000 | 1500 | 2000 | 3000 | 4000 | |
Aggregate size (Pebble/ Macadam) (mm) |
80/60 | 80/60 | 80 | 150 | 150 | |
Aggregate Bin volume(m3) | 8.38 | 12 | 20 | 30 | 40 | |
Belt conveying Capacity(t/h) | 300 | 450 | 550 | 650 | 900 | |
Weighing Accuracy | Aggregate (KG) | 3000Kg ±2% | 3000Kg ±2% | 2200Kg ±2% | 3000Kg ±2% | 4200Kg ±2% |
Cement(KG) | 1500Kg ±1% | 1500Kg ±1% | 1200Kg ±1% | 1800Kg ±1% | 2200Kg ±1% | |
Fly ash(KG) | 600Kg ±1% | 900Kg ±1% | 400Kg ±1% | 500Kg ±1% | 800Kg ±1% | |
Water (KG) | 600Kg ±1% | 600Kg ±1% | 500Kg ±1% | 800Kg ±1% | 1000Kg ±1% | |
Additive(KG) | 50Kg ±1% | 50Kg ±1% | 50Kg ±1% | 80Kg ±1% | 80Kg ±1% | |
Total power(KW) | 120Kw | 165Kw | 130Kw | 170KW | 220KW | |
Discharging height(M) | 3.8 m | 4.1 m | 4.1m | 4.1m | 4.1m |

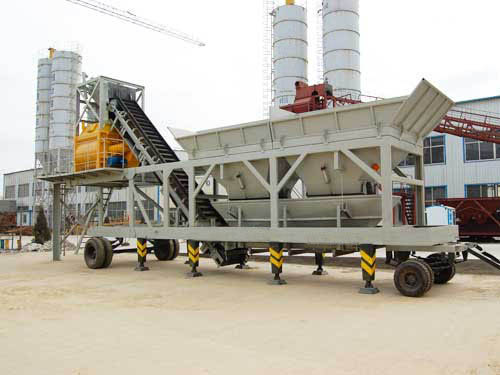

Skip hopper type concrete batching plant has the advantages of small area, flexible installation and convenient movement. It is very popular with users.
The bucket has a wide range of lifting, and it has less requirements for the types and characteristics of the materials. It can hohist not only general powdery and small granular materials, but also the material with greater abrasiveness.
The skip hopper type concrete batching plant has good sealing performance, less environmental pollution, and good operational reliability.
Advanced design principles and processing methods ensure the reliability of the entire machine.
The skip hopper system of this concrete batching plant is stable and reliable.
Were widely used in construction projects, ready mix concrete production and concrete prefabrication factory.
1. Standard seaworthy container 20 GP or 40 GP ,40 HQ according to configuration ;
2. With wires for fastening the machine and frame structure inside the container ;
3. The electric items and installation components packed with strong and standard packages.
