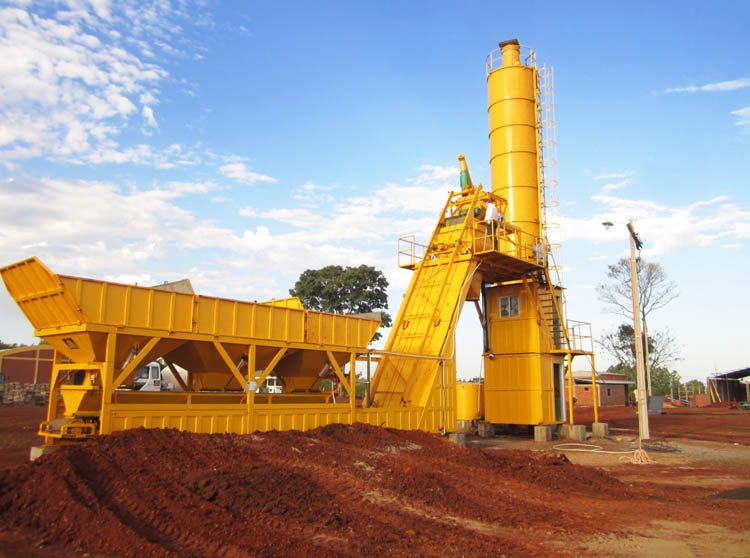

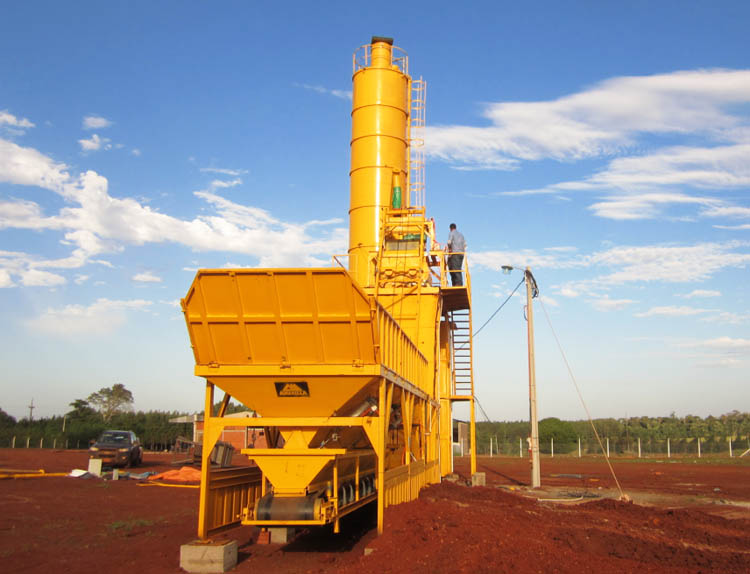

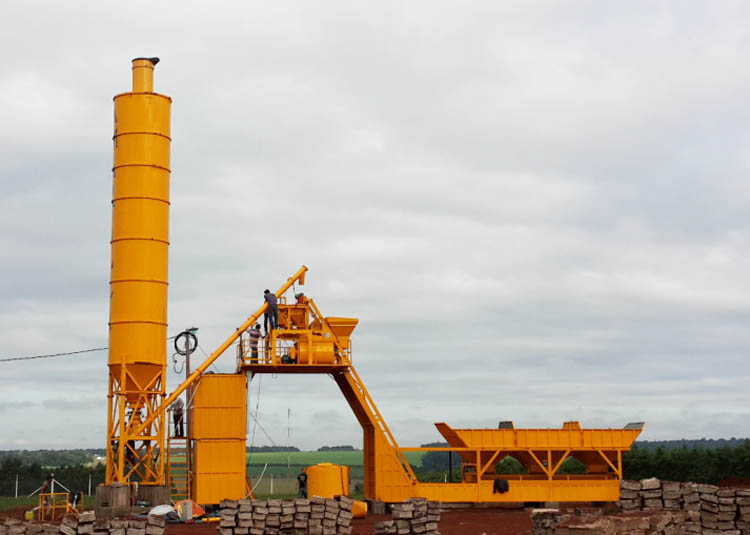

Fast-Way Portable Concrete mixing Plant is easy to move from site to site. Because it concentrates material storage, weighing, conveying, stirring, unloading, and automatic control system on a single trailer unit. And it is suitable for a short project with dense construction sites. All production processes, operation methods, maintenance methods are exactly the same between a stationary and mobile concrete mixing plants for sale.
ype | YHZS25 | YHZS35 | YHZS50/60 | YHZS75 |
---|---|---|---|---|
Theoretical productivity (m3/hr) | 25 | 35 | 50 | 75 |
Overall power (kw) | 60 | 62 | 85 | 88 |
Power source (V/HZ) | 380/50 | 380/50 | 380/50 | 380/50 |
Discharging height (m) | 3.8 | 2.8 | 3.8 | 3.8 |
Overall weight (t) | 20 | 20 | 24 | 27 |
Adopt JS1000 twin shaft concrete mixer, bringing better mixing quality.
Plant is completely erected and tested at the factory prior to shipping.
Belt type conveyor system contributes to higher efficiency of the whole plant.
Foundation is not needed in most cases.
Four “Less”: Less transportation cost, less foundation cost, less installation area,less installation and maintenance cost.
YHZS50 mobile concrete batching plants are widely used in various kinds of large and medium scale prefabricated factory, construction site, road, bridge, airport, tunnel and many other projects. It is also suitable for water conservancy, the electric power, the railroad, the road, the harbor-wharf and so on.
1. Standard seaworthy container 20 GP or 40 GP ,40 HQ according to configuration ;
2. With wires for fastening the machine and frame structure inside the container ;
3. The electric items and installation components packed with strong and standard packages.
