portable concrete mixer

Concrete Mixers

Brand Name:Haomei Machinery
Type:JZC
Port:Any port in China

Send - Email
Contact Us
+86-371-65621392
Download PDF

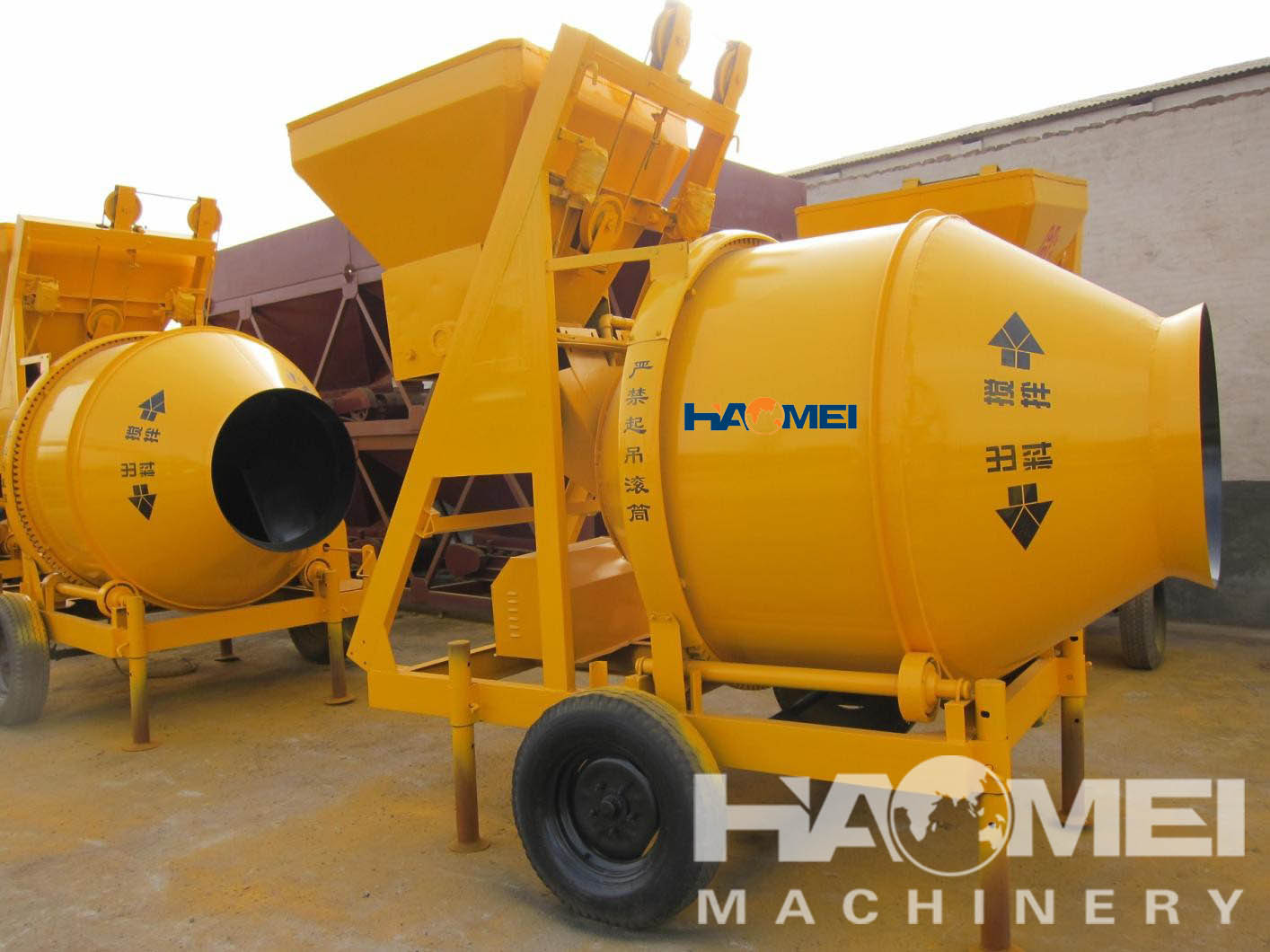

JZC series portable concrete mixer is a gravity type of doubleconic reversing drum concrete mixer, the drum transit by gear or friction wheel, the drum rotates clockwise during mixing and anticlockwise during discharging. It is portable and movable. The mixer can mix plasticity and damp half-dry concrete. These mixer services for ordinary construction site, roads, bridge projects and precast plant.

Model	JZC250	JZC350	JZM350	JZM500	JZM750
Discharge Capacity	250 L	350 L	350 L	500 L	750 L
Charging Capacity	320 L	560 L	560 L	800 L	1200 L
Productivity	6-8 m³/h	10-14 m³/h	10-14 m³/h	18-25 m³/h	25-37 m³/h
Max. Aggregate size	60 mm	60 mm	60 mm	70 mm	80 mm
Mixing Motor Power	4.5 kw	5.5 kw	5.5 kw	7.5 kw	11 kw
Lifting Motor Powe	4 kw	4.5 kw	4.5 kw	5.5 kw	7.5 kw
Pump Power	0.55 kw	0.55 kw	0.55 kw	0.75 kw	0.75 kw
Drum rotating speed	17 r/min	14r r/min	14 r/min	13 r/min	12.26 r/min
Weigh	1500 kg	1950 kg	2000 kg	3100 kg	4200 kg
Dimension(LWH)	2260X1900X2750 mm	2766X2140X3000 mm	2766X2140X3000 mm	5230X2300

Advantages

Compact and portable for easy transportation.
Mixes a full barrow load of concrete or mortar
Complete with barrow height swivel and stand.
Full thermal overload protection.
Proven robust and durable design.
Extra thick drum with quick mix paddles.
Heavy-duty sealed cast gearbox for longer life.
Large choice of engines and electric motors to suit the user.
Electric or Petrol options available.
Variable throttle on Honda GX120 variant.
Enclosed Electric motor, sealed to IP 45.
CE compliant, with NVR (No Volt Release) safety power switch
