Mobile Concrete Mixing Plant

HZS25 portable concrete batch plants for sale
Get lastest price Get lastest price Pdf download Get lastest price

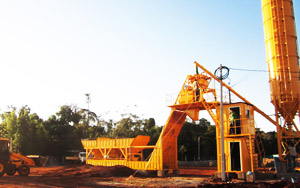

HZS25 portable concrete batch plants for sale

  • Condition: Brand new
  • Minimum Order Quantity: One set
  • Delivery port: Qingdao or Tianjin port, China
  • Payment term: L/C, T/T
  • Guarantee period: 12 months
  • Delivery time: 10-15 days after received deposit
  • Installation time: 20days

Get lastest price

  • Description of portable concrete batch plants for sale:

    HZS25 portable concrete batch plants for sale adopts JS series twin shaft compulsory mixer, producing homogeneous concrete cement with good quality in short time. The easily damaged parts could last for long time, convenient to operate and maintain. It applied the latest design for electronic weighing, computer control and digital display. The electronic weighing system has a buffer device and automatic volume compensation with high accuracy. The sand and gravel feeding system applied inclined belt with great width, the maintenance walkways is installed. It is the ideal choice for producing high-quality concrete cement.

    Features of portable concrete batch plants for sale:

    1. Driving system adopts planetary gear, the gimbals transmission shaft insures circumgyrate at the same speed

    2. With its modularization structure, it is easy to transport, install and debug more quickly.

    3. Mixing system choose the spiral mixing system , which has high efficiency , scale board and mixing blades adopts high-rigidity and high tenacity wearable case alloy steel, to prolong the working life.

    4. Aggregate lifting appliance adopts frequency control, thus providing smooth and reliable operation.

    5. Lubrication system adopts advanced centralized oil lubricating system, convenient for oil supplying, this system is equipped with overvoltage warning and low oil level warning, safe and reliable

    6. With its virtue of precise computation, it can meet the requirement of every high performance concrete.

    7. Human-based intelligent control facilitates the operation greatly.

    8. Structural members are durable, and most electric elements adopt world famous brands.

    In addition,we have concrete batch plant in Philippine and we focus greatly on our products quality.If you are interested in any of our production,please contact us.We are looking forward to establish business relationship between us based on our mutual benefits.

    Specification
    Unit
    Value
    Theoretical productivity
    m3/h
    25
    Weighing scale Concrete
    Kg
    2000
    Weighing scale Cement
    Kg
    510
    Weighing scale Water
    Kg
    150
    Weighing scale Liquid addictive
    Kg
    15
    Overall power

    KW

    about 60(optional parts not included)
    Power source
    V/ HZ
    380/50
    Discharging height
    M
    3.8
    Overall weight
    T
    20 (optional parts not included)
    Trail speed
    km/h
    ≤40
    Specification(LxWxH) During work
    M

    17x3.6x8.2

    During transportation
    M
    17.6x2.4x4.35
