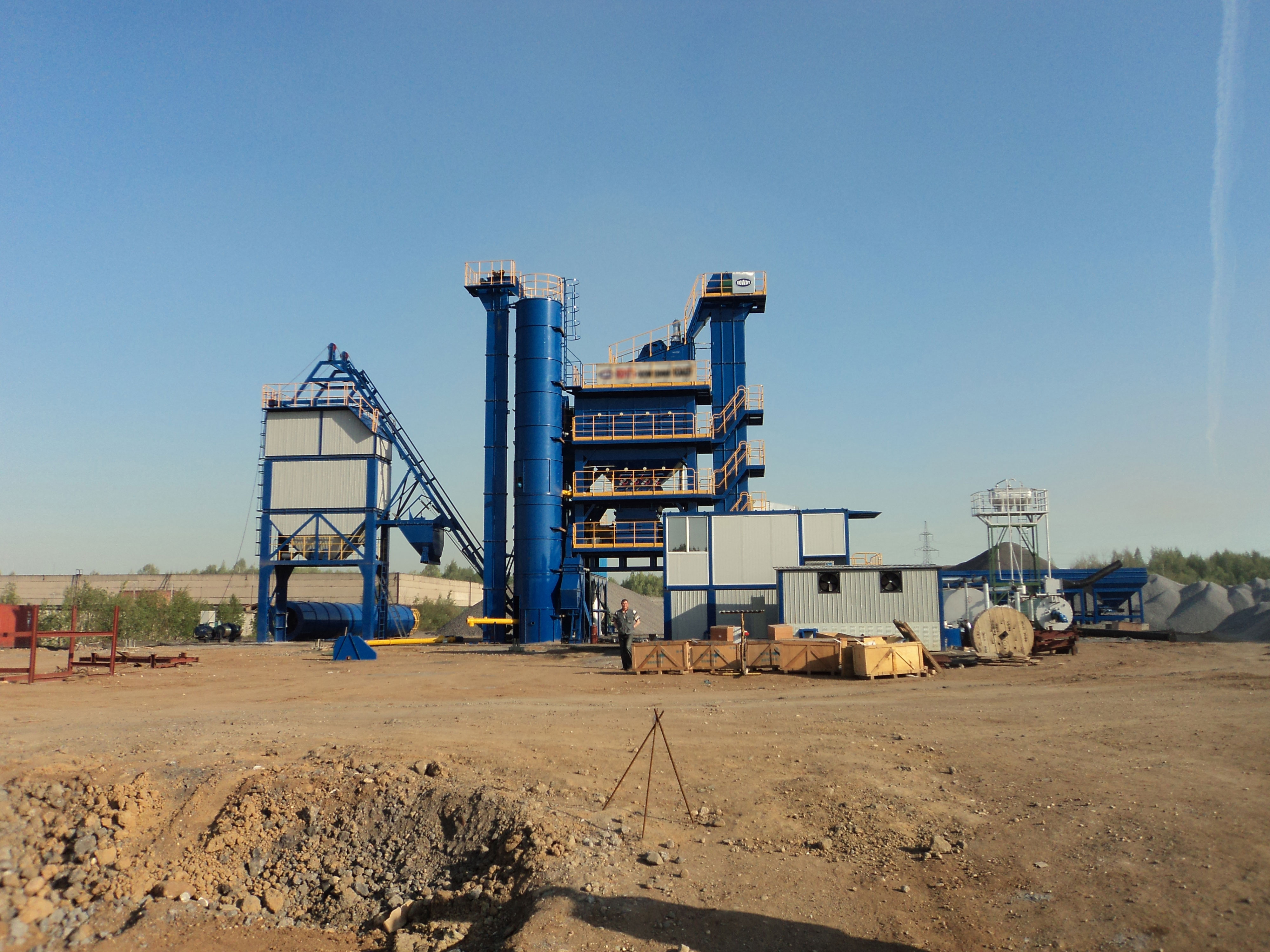

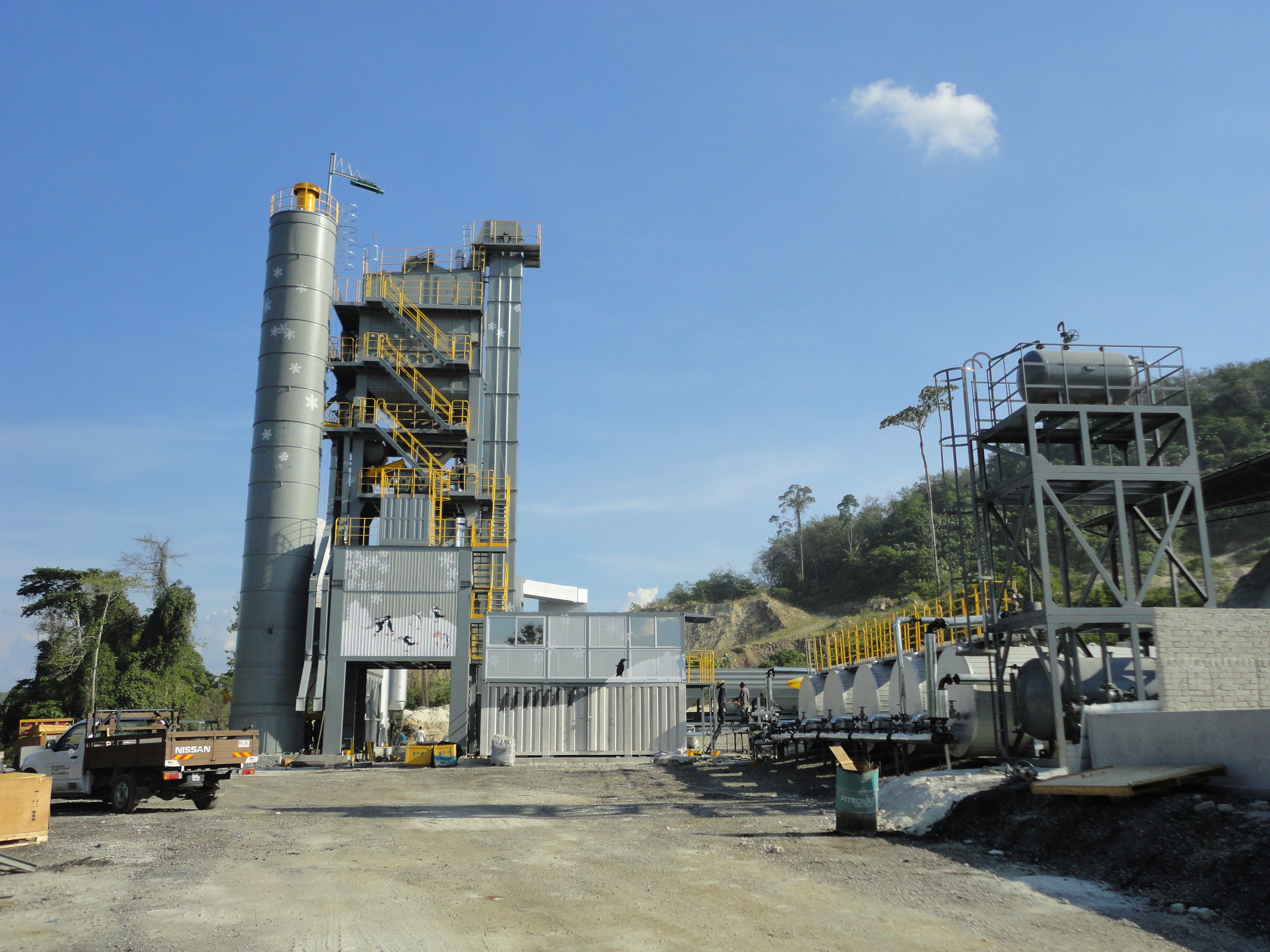

Add to Product FavoritesLB1000 asphalt plant belongs to stationary asphalt mixing plant, it is suitable for large and long-term construction, dismantling will cost much money, therefore, if your construction project has long period, and need to produce a large quantity asphalt, stationary type will be your ideal choice; while, if your construction site is changeable, asphalt mixing plant mobile will be your best choice.
LB1000 Asphalt Batch Mixing Plant adopts modular structure, reasonable layout, simple and compact structure. This asphalt mixing plant is convenient for transport and install.
Compared with other asphalt plants of the same type at home and abroad, LB1000 asphalt mixing plant is more economic and energy-saving and has higher quality.
Model | LB1000 | |
---|---|---|
Capacity | 80t/h (standard working condition) | |
Mixer Capacity | 1000kg/batch | |
Drying Drum | Φ1600*6800mm | |
Fuel Consumption | Diesel: 5.5-7kg/t; Coal:10kg/t | |
Measurement Accuracy | Aggregate | ±0.5% |
Filler | ±0.5% | |
Bitumen | ±0.25% | |
Finished Asphalt Temperature | 130℃-165℃ | |
Dust Collector | gravitational dust collector & Second baghouse dust collector | |
Air Emissions | ≤20mg/Nm³ | |
Dark exhaust standard | Ringelmann I | |
Working room noise | ≤70db(A) | |
Environment noise | ≤80db(A) | |
Operation | Full Auto/Manual Operation | |
Total Installation Power | ≈285kW | |
Voltage | 220V/380V-50Hz (adjustable) | |
Plant Covering Area | Length:30m; width: 28m; max height point: 17m |
It is composed of cold aggregate supply system, drum dryer, burning system, hot aggregate elevator, vibrating screen, weighing system, mixing tower, dust collecting system, filler supply system, bitumen supply system, electrical control system and finished asphalt storage bin.
Features1. LB1000 asphalt plant covers fewer areas on site.
2. For its bag house dust collection system, the cleaning type is high voltage pulse.
3. Light weight and compact structure make this asphalt plant cost less.
4. Low power of the whole asphalt plant reduces electric consumption.
5. Standard modular design makes the installation easy and convenient.
6. Commissioning one-time production, would not produce waste material, can save each ton of material for you.
