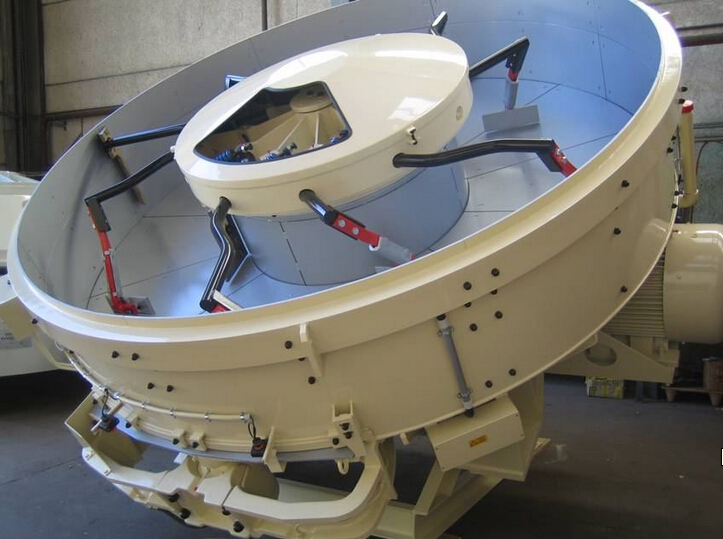

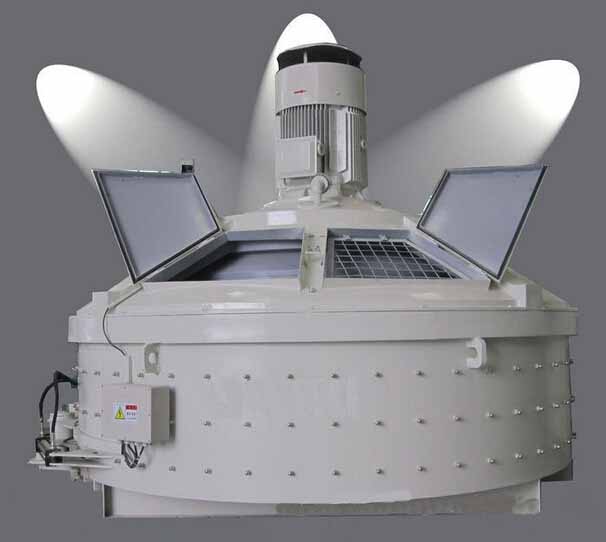

Planetary Concrete Mixer

Download Product Manual (PDF file)
wade@haomei.biz Get samples and prices !

Cut to size at customers' need !

Add to Product Favorites
Product Overview

Planetary concrete mixer will be suitable for high purity concrete mixing plant, which can make the material more uniform mixing, and wil be the best choice for building blocks and precast industry;

1. This planetary concrete mixer can stay more time by way of oil / manual dual mode switch discharge door.
2. Economic and durable, convenient maintenance;
3. Compare with the same amount of twin shaft concrete mixer, the planetary concrete mixer can be highly low, easy mixing station layout planning;
4. Optional aggregate lifting device;
5. 0.5m3~2.0m3 capacity specifications of planetary concrete mixer can be optional.

Model MP330 MP500 MP750 MP1000 MP1500 MP2000 MP2500 MP3000
Output Capacity (L) 330 500 750 1000 1500 2000 2500 3000
Input Capacity (L) 500 750 1125 1500 2250 3000 3750 4500
Input Mass (kg) 800 1200 1800 2400 3600 4800 6000 7200
Mixing Power (kw) 15 18.5 30 37 55 75 90 110
Discharge Power (kw) 2.2 2.2 2.2 3 3 4 4 4
Lifting Power (kw) 4 4 7.5 11 15 22 -- --
Skipper Capacity (L) 580 870 1300 1740 2610 3480 -- --
Skipper Mass (kg) 870 1305 1950 2610 3615 5220 -- --
Skipper Speed (m/s) 0.25 0.25 0.25 0.25 0.25 0.25 -- --
Weight (kg) 1700 2000 3500 6000 7000 8500 10500 11000
Dimension (mm) 1910 x 1590 x 1747 2220 x 2071 x 1880 2581 x 2336 x 2195 2891 x 2602 x 2217 3223 x 2902 x 2425 3625 x 3230 x 2630 2893 x 3550 x 2695 3893 x 3550 x 2975

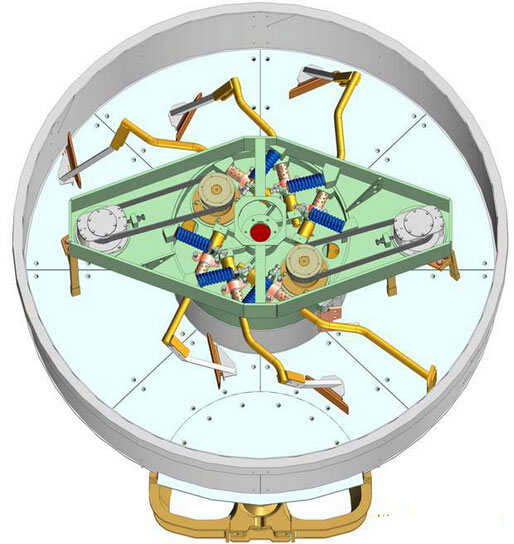

Drawing Planetary Concrete mixer Features

1. Skip hopper hoisting system can be chosen according to customer’s actual requirements
2. Homogeneous mixing performance
3. Ni-hard cast iron blades are more wearable
4. Manual discharge is available in case of electric failure
5. More than one discharging gate can be opened. Usually maximum three discharging doors are available
6. Large access facility is for easy maintenance and cleaning
7. The key-operated safety switch and limit switch guarantee safety

Why Choose Haomei Machinery.
  • Technologies:Top polishing technology guarantees good luster and smooth surface.
  • Markets:Obtain market sharing all over the world.
  • Equipment:Advanced cutting line to provide a wide range of specifications.
  • Production capacity:25 to 180m3/h.can be customized to meet any demand of the products raised by our customers.
  • Employees:Over 25 sale persons to provide good service for customers.
  • Responsibility: Engaged in charity donation and provide eco-friendly products.
Packaging and Delivery of Haomei.

1. Standard seaworthy container 20 GP or 40 GP ,40 HQ according to configuration ;
2. With wires for fastening the machine and frame structure inside the container ;
3. The electric items and installation components packed with strong and standard packages.

  • Concrete-plant Packaging
  • Concrete-plant Packaging
  • Concrete-plant Packaging
  • Concrete-plant Packaging
  • 1. How does JS500 Concrete Mixer work?
    The JS500 Concrete mixer is a double-shaft forced concrete mixer. Through reasonable design, the mixing efficiency is high, and the quality of the stirred concrete is fine and uniform. But how does JS500 concrete mixer work? Do you know?
    1. Feeding sand and gravel loading is manual feeding, small dump truck picking up; water is pumped by the JS500 mixer water pump to the top tank, and the water is manually operated; the cement is directly dumped into the mixer hopper by manual unpacking.
    2. The weighing sand and gravel are weighed by the weight of the manual push trolley; the cement is measured by 50kg per pack; the water is quantified by the water tank scale. Weighing error: 2% for cement, 3% for sand and stone, and 2% for water admixture.
    3. The aggregate sand and cement are poured into the hopper of the mixer. The wire rope pulling hopper climbs upwards. When climbing to a certain height, the hopper enters the loading frame, the door is automatically opened, and the material is discharged into the mixing drum through the funnel while pushing the sluice enters the water.
    The material is generally mixed for 58s. When the concrete mixture is stirred evenly, it can be discharged.
    The mixer is the bottom opening and unloading, which avoids the tilting of the mixing drum, which is safe and labor-saving, and simplifies the structure. The arrangement is more compact and reasonable. The concrete falls into the transport trolley and is sent to the on-site pouring place.
    The use of the JS500 mixer alone requires a lot of manual participation. It is recommended that you can use the PLD800 concrete batching machine together to achieve automation, greatly improve productivity, and be safe and reliable.if you want more information, please email wade@haomei.biz
  • 2. What is the price of your concrete mixer?
    We have listed the price range of all our concrete mixers on this website for your reference. The final price is affected by multiple factors such as raw materials, exchange rates and freight. If you intend to purchase, please leave us a message and we will update the price for you.
