Add to Product FavoritesConcrete Mixer Truck (cement mixer truck, concrete agitator truck) is a device that homogeneously combines concrete, aggregate such as sand or gravel, and water to form concrete – a powered device that mixes concrete with water and aggregate, such as sand or pea gravel, to make concrete. When the truck moved, the mixer tank work to mix the concrete.

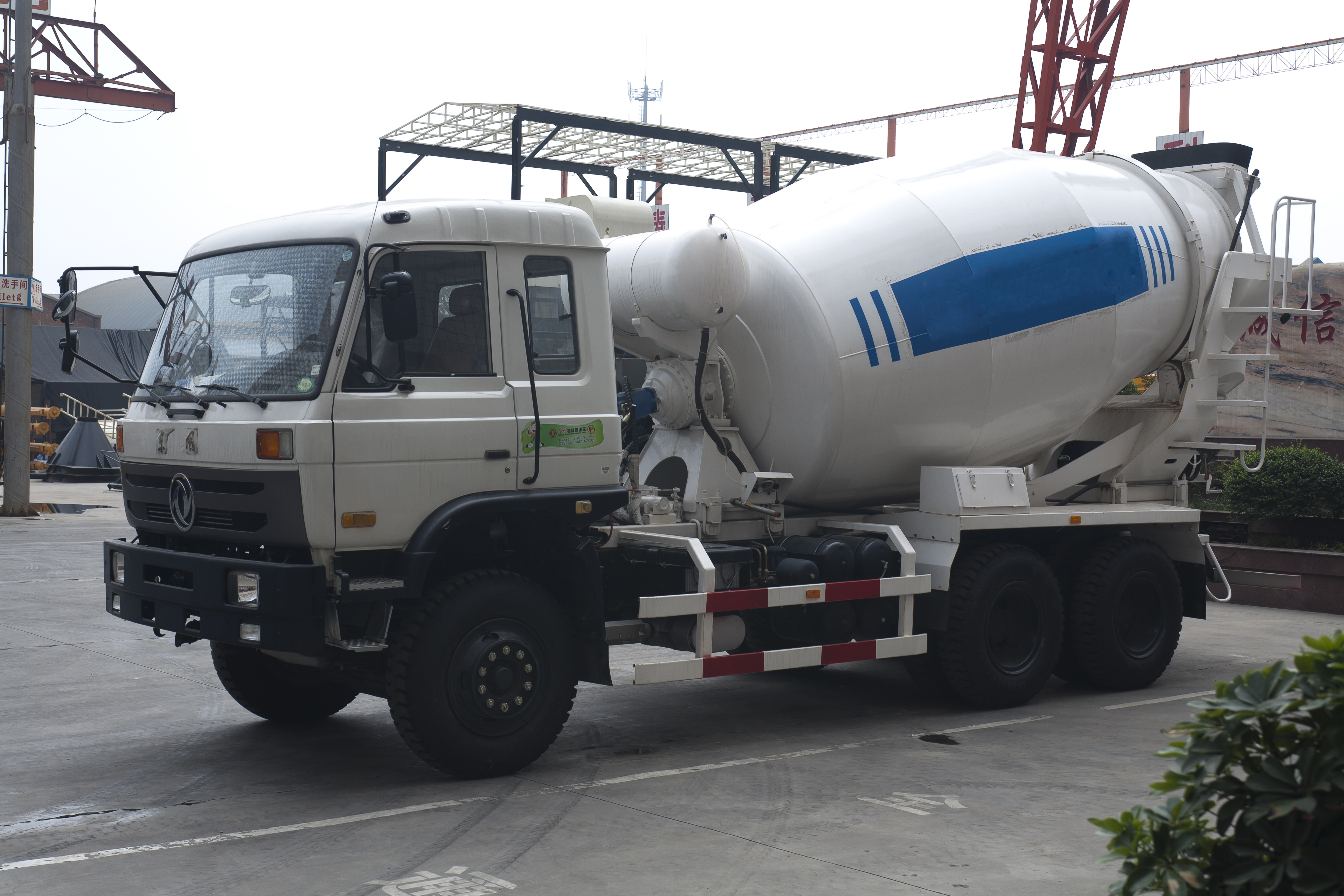

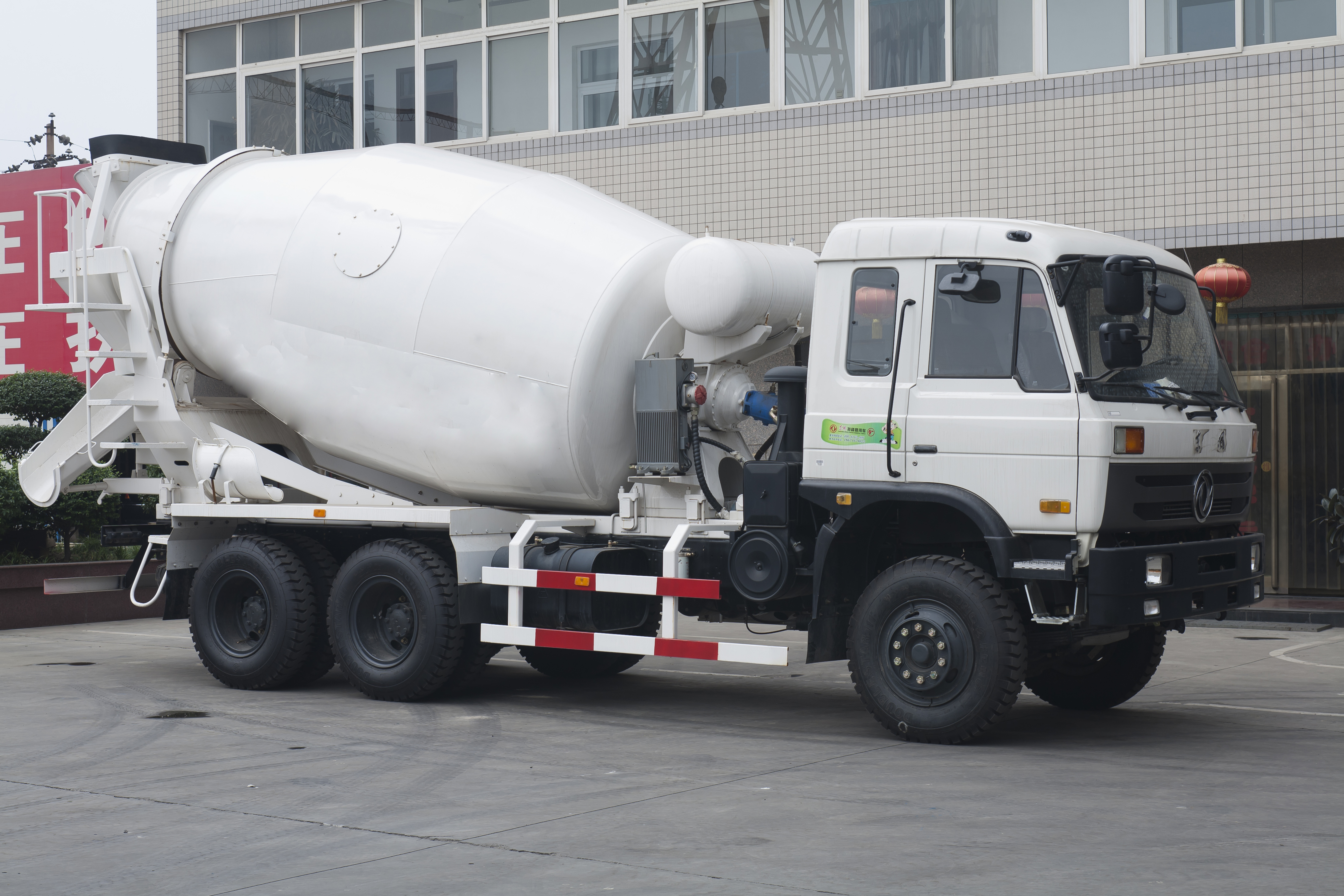

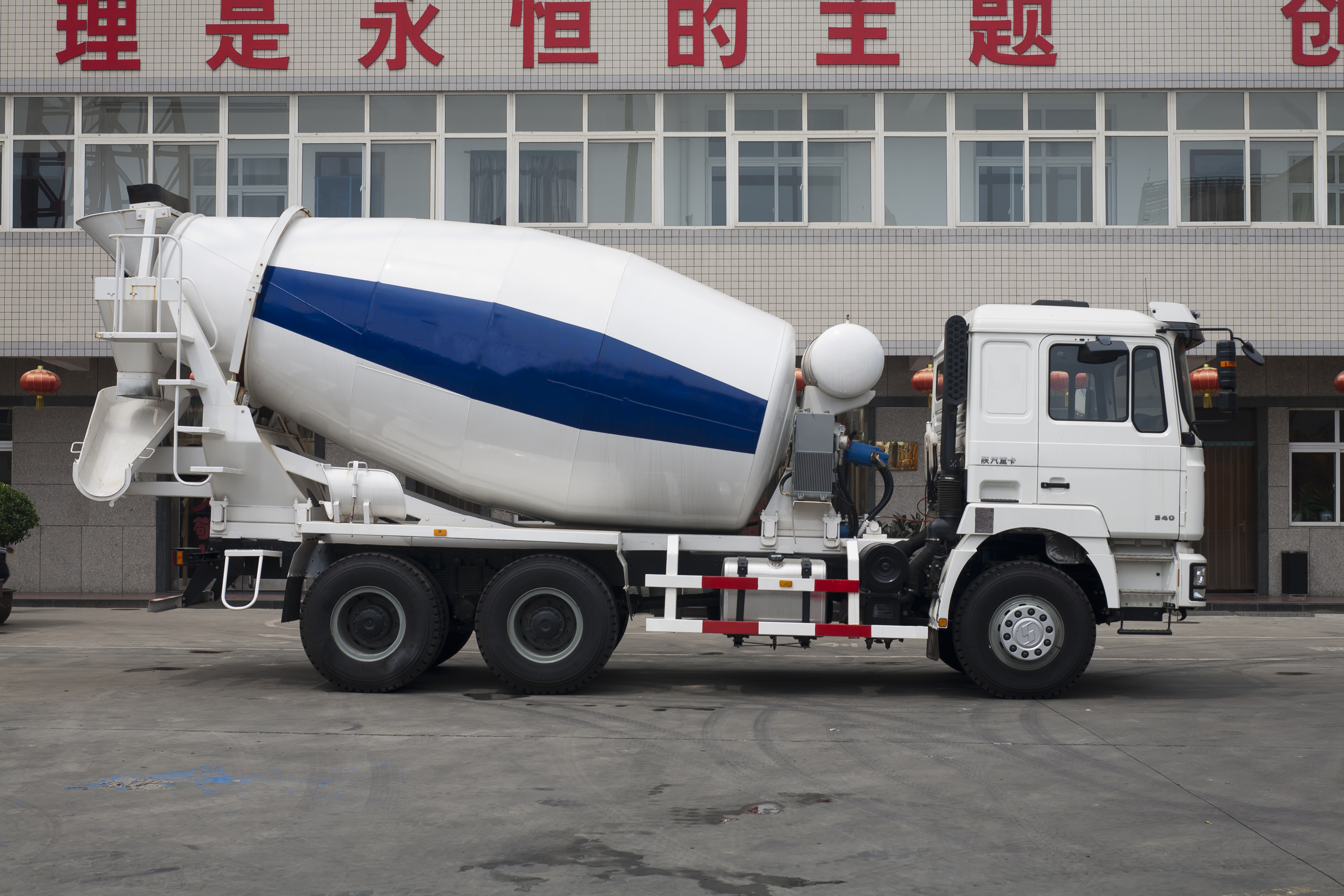

HAOMEI serial HM6-D Concrete Mixer Truck is strong well designed equipment meant for transporting concrete / mortar from concrete batching plant directly to the place where it is to be poured
Model |
HM6-D |
|
Specification |
Unit |
Value |
Mixing Capacity |
m³ |
6 |
Tank Volume |
m³ |
9.96 |
Feeding Speed |
m³/min |
≥3 |
Discharging Speed |
m³/min |
≥1.5 |
Residual Ratio of Discharging |
% |
≤0.5% |
Water Supply System |
|
Air pressure |
Water Tank Volume |
L |
260 |
Overall Dimension |
mm |
8450*2496*3835 |
Chassis Model |
|
Steyr |
Clutch |
φ |
φ430 Monolithic dry type |
Min Ground Clearance |
mm |
297 |
Max Speed |
km/h |
75 |
Engine Max Output Power |
kw |
247 |
Emission Standard |
|
Euro Ⅲ |
Rated Load |
kgs |
12600 |
Overall Weight |
kgs |
25000 |
Wheelbase |
mm |
3225+1350 |
1. High-intensity drum material, featuring better wear-resistance and long service life;
2. Optimized mixing blades, low material residue;
3. High-quality parts, reliable running;
4. Excellent performance and convenient operation;
5. Imported original hydraulic system
Wide range of application especially for mass concreting works like Construction of Canals, Bridges, Highways, Dams, Multistoried & Industrial Buildings, Factories, and Airports for ready mixed concrete works.
1. Standard seaworthy container 20 GP or 40 GP ,40 HQ according to configuration ;
2. With wires for fastening the machine and frame structure inside the container ;
3. The electric items and installation components packed with strong and standard packages.
