Add to Product FavoritesHAOMEI pump trailer contains three series and more than twenty product types, and HAOMEI is the professional producing base with most complete models and specifications in CHINA, which can fully meet various needs of all customers. HAOMEI pump trailer all adopts steamline production assembly while the company strictly controls all the machining processes and assembly quality and gives final test to every pump trailer by simulation working conditions and overload experiments to ensure customers’ zero fault in the first operation.

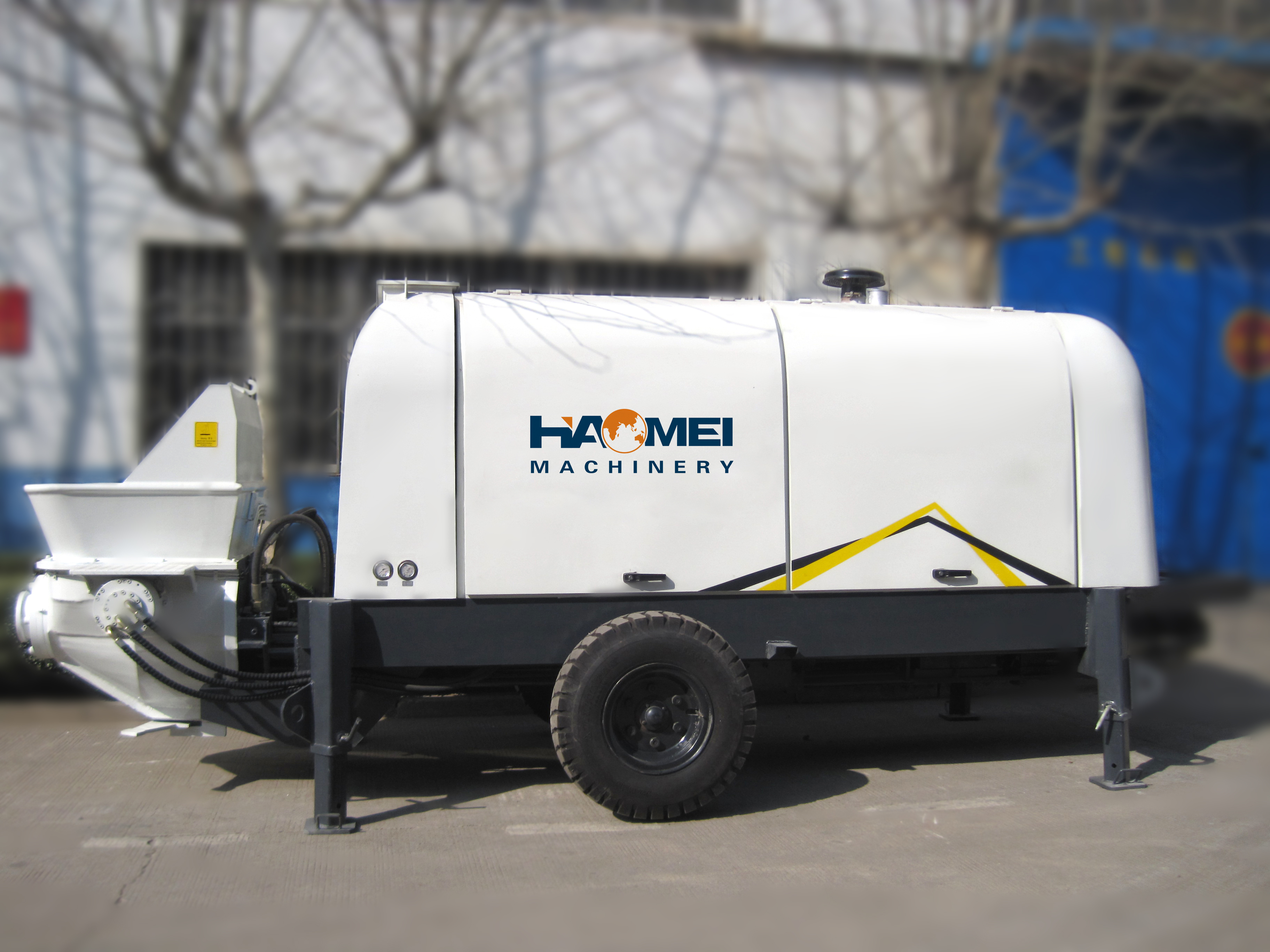

HAOMEI Trailer Concrete Pump is a new product at international level which is developed by combining latest technologies both at home and abroad. HAOMEI S-valve serial high-pressure pumps, Z-gate-valve serial medium-pressure pumps and D-butterfly-valve serial low-pressure pumps are concrete transport equipments widely applied to such building projects as urban construction, bridge, power, and energy sources, etc. The machines adopt such world advanced techniques as open hydraulic loop, distribution valve auto-compensating clearance, constant power control, total hydraulic automatic change, and electric proportional control, etc., carried out deep and meticulous studies and experiments in many aspects like concrete piston self-lubricating, etc., and has won many patents.
Item | Unit | HBT80 |
Theory Concrete Output (Low / High Pressure) |
m3/h | 85/42 |
Concrete Pressure (Low / high pressure) |
Mpa | 13.5/8 |
Hydraulic system pressure | Mpa | 32 |
Rotation speed | r/min | 1480 |
High / low pressure switch | Yes | |
Distribution valve | S valve | |
Pumping cylinder diameter/ Stroke | mm | 200/1800 |
Main oil pump discharge | ml/r | 224 |
Motor power | kw | 110 |
Voltage/ Frequency | V/Hz | 380/50 |
Hydraulic tank volume | L | 500 |
Height of adding material | mm | 1400 |
Hopper volume | m3 | 0.7 |
Total mass | kg | 6200 |
Concrete slump | mm | 120-200 |
Aclinic Delivery distance | m | 1000 |
Theory vertical pumping height | m | 250 |
Dimension: L*W*H | mm | 6680*2210*2150 |
1. Electrical system using the German Siemens programmable logic controller (PLC), for precise control of the machine and the machine has a working status and fault display;
2. Closed electrical control box, ensure that the system can work in dust, humidity and other harsh environments;
3. Wired remote control device can be connected;
4. There is secure power outlet for night construction and maintenance;
5. Most of the components using the world famous brand and high reliability.
1. Standard seaworthy container 20 GP or 40 GP ,40 HQ according to configuration ;
2. With wires for fastening the machine and frame structure inside the container ;
3. The electric items and installation components packed with strong and standard packages.
