Product Overview

YHZS35 mobile concrete batching plant is the new type of moveable concrete batching plant that designed and produced by our our company which have adopted advanced technology and scientific achievements from domestic and abroad, combine our abundant experience of produce batching plant. It is one of the best mobile concrete batching plant in China. It’s structure is compact and reasonable. Most of the functions like batching system, electric weighing system, aggregate lifting system, mixing system are integrated into a trailer unit. So it is convenient to move and easy to install. It is your best choice for mobile operations in various constructions such as highway, railway, architecture, municipal engineering, bridge, port and hydropower station.
This series of mixing plant adopts the semi-pulling structure with running system and standard coupling pin included. It can be dragged by trailer. Without foundation and commissioning enables convenient transportation, the mixing plant can be divided into several standard modules, and then be packed into containers.

Model		YHZS35
Mixer		JS750
Productivity		35m3/h
Aggregate hopper		4*5m3
Grain size		≤80mm
Discharge height		2.8m
Total weight		20T
Total power		55kw
Weighing accuracy	Aggregate	2000kg±2%
	Powder	300kg±1%
	Water	250kg±1%
	Additive	20kg±1%
Dimension		14.1mx2.2mx3.9m(Moving)13.2mx3.3mx6.7m(Working)
Speed		15km/h
Voltage specification (as request)		380v/50Hz (as request)

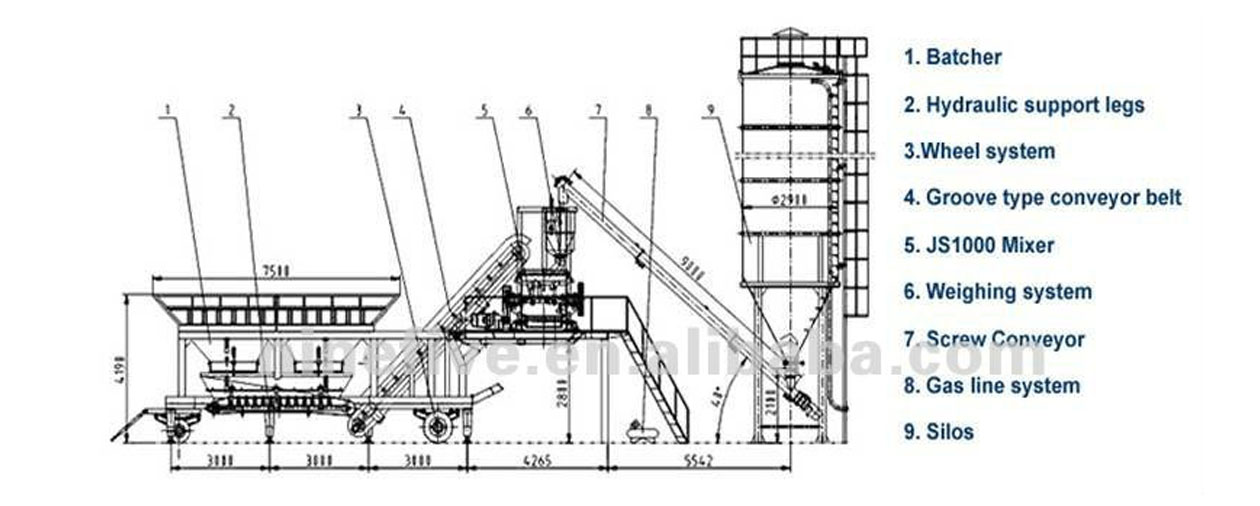

Drawing

Features

1. "double composite spiral band" host using iron-chromium alloy wear-resistant materials, its shape and surface are with high shock resistance mechanical strength, good wear-resisting property, its center is with good toughness! Proper working life is 50,000 pots, a substantial increase in product life!
2. The whole plant uses automatic control systems, Siemens PLC, Schneider Electric components, computers and printing integration, simple operation, easy to debug.
3. Pneumatic system is with Taiwan Fusheng well-known air compressor, providing sufficient air supply for the entire concrete mixing plant.
4. Weighing system adopts international famous brands, weighing accuracy and sensitivity to ensure the quality of concrete.
5. Using section structure, unit modulation, fast installation and debugging and moving is very convenient.

Applications

Mobile concrete batching plant is a station of material storage material, weighing, conveying, stirring, unloading and automatic control ; The process, operation and maintenance are exactly the same with fixed automatic batching plant; It is a combination of mobile and flexible, easy disassembling fast, simple storage management and other unique characteristics; Suitable for railways, Bridges, ports, water and electricity engineering construction .

Why Choose Haomei Machinery.

Reliability: 20 years of experiences in manufacturing concrete batching plants;
Markets:Obtain market sharing all over the world.
Equipment:Advanced cutting line to provide a wide range of specifications.
Production capacity:25 to 180m3/h.can be customized to meet any demand of the products raised by our customers.
Employees:Over 25 sale persons to provide good service for customers.
Responsibility: Engaged in charity donation and provide eco-friendly products.

Packaging and Delivery of Haomei. packing and shipping Mobile concrete batching plant

1. Standard seaworthy container 20 GP or 40 GP ,40 HQ according to configuration ;
2. With wires for fastening the machine and frame structure inside the container ;
3. The electric items and installation components packed with strong and standard packages.

FAQ

What is the price of a Mobile batching plant?
Just like buying a custom computer, a quotation can only be issued after all the configurations are confirmed. By telling us the configuration you need, or the use scene, you will get a detailed quotation list in 24 hours.
How much will it cost for the Mobile concrete plant to be delivered?
Before your equipment is ordered, you should know the totals for what it will cost, including freight and insurance, to have all the equipment delivered to your exact address or shipping port. We need to specify the exact equipment you are considering for purchase in detail before providing you a freight offer. You would normally obtain an exact freight offer after you have visited me or have seen the equipment in operation. We don’t provide freight quotes until we both know exactly what you need and have been quoted on equipment.
what range size cement Silos you supply?
The regular size is 30T- 300T, and the biggest Bolted Type Silos can up to 1500T .
What kind of spare parts you supply?
All Batching plant parts, including mechanical processing parts, mixer wearing parts, pneumatic fittings, load cell, belt conveyor parts, roller, motors, bearings, electrical elements & cables, switch board and so on
What should I do if experiencing a problem on our batching plant?
Please email or call us what it happen, show us the symptom details and photos, then our engineer will guide you how to cover it. Our service line will be on line 24/7/365.
