LB4000 Asphalt Mixing Plant

Download Product Manual (PDF file)
wade@haomei.biz Get samples and prices !

Cut to size at customers' need !

Add to Product Favorites
Share
Product Overview

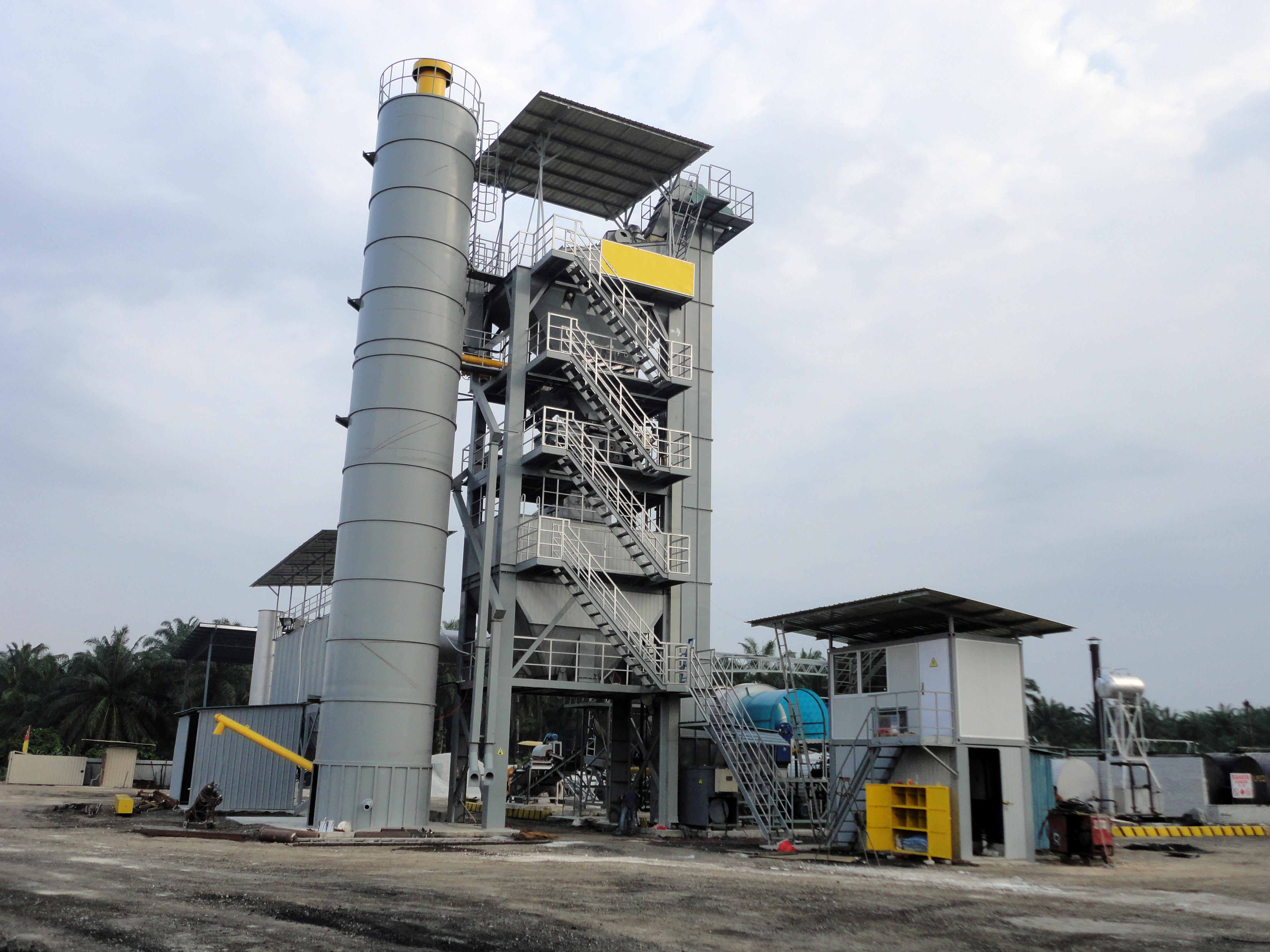

LB4000 asphalt mixing plant adopts advanced technology and newest degign which we have optimizeed again and again.Finally forms the characteristics: compact structure, stable and reliable performance. This asphalt plant is widely used in all levels of road construction, and can be designed to be loaded into containers to meet the shipping requirements.

Model

LB4000

Main Parameters

Capacity(t/h)

320

Total Power(kw)

836

Noise(dB)

≤70

Voltage

220V/380V-50HZ(Adjustable)

Cold Feeder

Cold Bin(m³)

6*10

Belt Feeding Capacity(t/h)

340

Belt Width(mm)

800

Feeding Belt Adjustment Mode

Frequency Invertor

Drying System

Drying Capacity(t/h)

340

Dryer Drum Size(mm)

Φ2800*11000

Drive Motor Power(kw)

4*30

Fuel

Diesel, Heavy Oil, Fuel Oil, Coal, Nature Gas

Coal Burner

Max Burning Amount(kg/h)

4500

Oil Burner

Max Burning Amount(kg/h)

360-1800

Power(kw)

4000-20000

Dust Collecting System

Primary Gravity Dust Collector

Cyclone Dust Collector, Volute Casing Collector

Baghouse Dust Collector

Filter Area(m²)

1152

Filter Bag

NOMEX (USA. DuPont)

Air Emissions

≤20mg/Nm³

Air Black

RingelmannⅠ

Blower(m³/min)

2230

Mixing Tower

Hot Aggregate Elevator

Type

Chain Elevating

Capacity(t/h)

340

Vibrating Screen

Screening Decks

6

Screening Area( m²)

25.9

Hot Storage Bin

Quantity

6+1

Capacity( m³)

65

Mixer

Mixer Capacity(kg)

4000

Type

Double Axis Forcing Stirring Batch Mixer

Mixing Period(s)

45

Mixing Power(kw)

2*55

Weighing System

Hot Aggregate:±0.5%; Bitumen: ±0.25%; Filler:±0.2%

Bitumen Supply System

Heating Type

Electric Heating/Hot Oil Heating System

Bitumen Pump

Screw Pump Injection Type

Discharge Amount of Bitumen(L/min)

900

Bitumen Tank( m³)

4*40

Fuel Tank

Optional

Filler Supply System

Filler Tank

Optional

Screw conveyor Capacity(t/h)

44

Hot Mix Storage Silo

Bottom Placed/Side Placed

40t/60t/80t, Optional

Pneumatic System

Air Compressor

Screw Air Compressor

Air Storage Tank

600L---2000L Optional

Control System

Fully Automatic Computer Control(IPC+PLC+MONITOR+LASER PRINTER+AIR CONDITIONER)



Drawing

It is composed of cold aggregate supply system, drum dryer, burning system, hot aggregate elevator, vibrating screen, weighing system, mixing tower, dust collecting system, filler supply system, bitumen supply system, electrical control system and finished asphalt storage bin.

Drawing Asphalt Mixing Plant Features

Modularized structure enables quick installation;
High-efficient and energy-saving aggregate heating system;
Precise measuring technology;
Original high-efficient mixing technology;
umanized intelligent control system;
mission standard can meet the environment protecting requirements;
Steady and reliable, easy for maintenance;
International brands for auxiliary parts and accessories.
