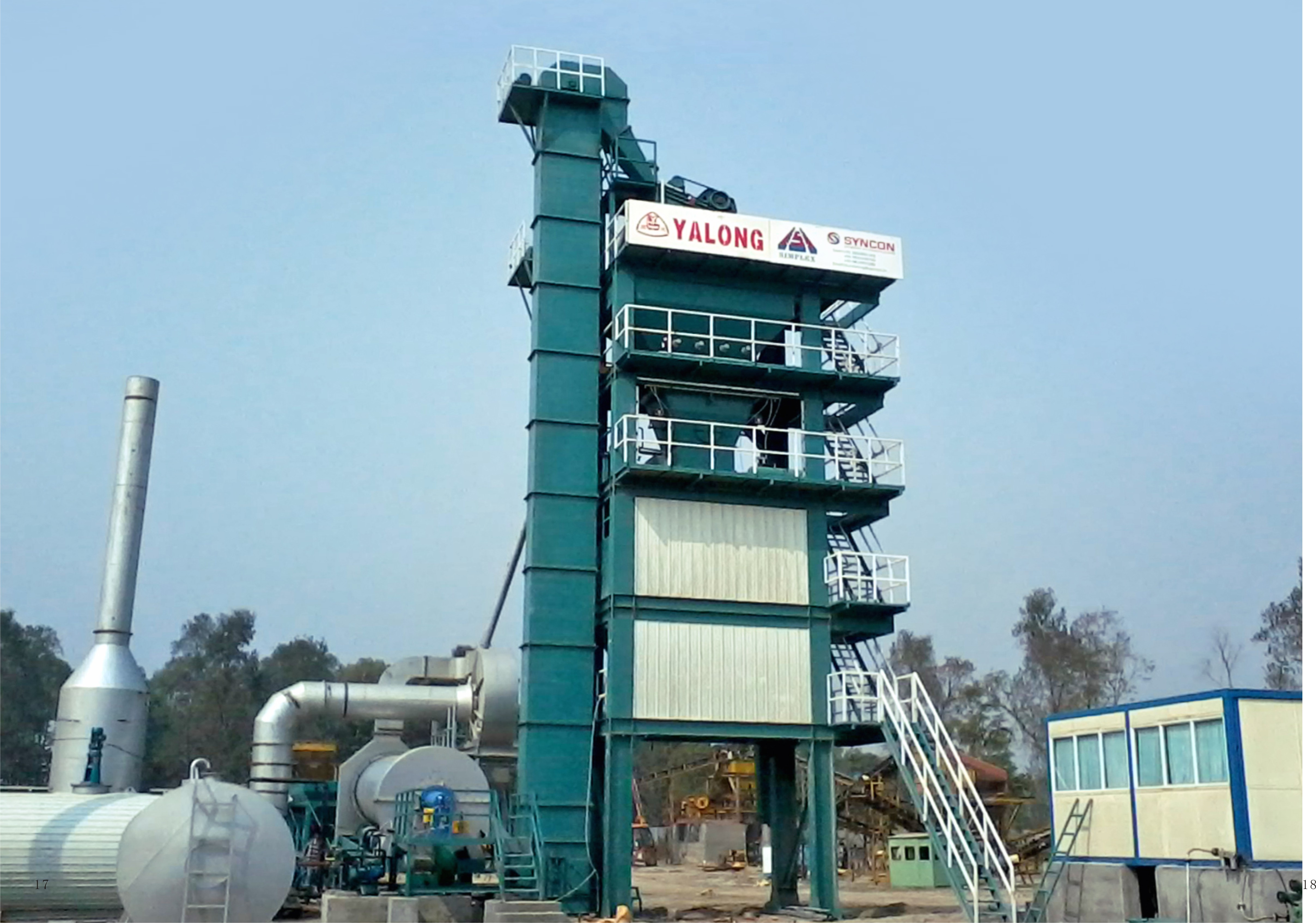

Add to Product FavoritesAsphalt Batch Mix Plant LB Series is new and ideal construction equipment used for manufacturing asphalt that is mainly applied in highway road construction and other civil construction. As a professional asphalt mixing plant manufacturer and exporter, Haomei Machinery is good at producing products to clients according to their actual demands. With high quality and lower price, asphalt batching plants produced by our company could also satisfy the international standards.
odel | LB500 | |
Capacity | 40t/h (standard working condition) | |
Mixer Capacity | 500kg/batch | |
Drying Drum | Φ1200*5500mm | |
Fuel Consumption | Diesel: 5.5-7kg/t; Coal:10kg/t | |
Measurement Accuracy | Aggregate | ±0.5% |
Filler | ±0.5% | |
Bitumen | ±0.25% | |
Finished Asphalt Temperature | 130℃-165℃ | |
Dust Collector | gravitational dust collector & Second baghouse dust collector | |
Air Emissions | ≤20mg/Nm³ | |
Dark exhaust standard | Ringelmann I | |
Working room noise | ≤70db(A) | |
Environment noise | ≤80db(A) | |
Operation | Full Auto/Manual Operation | |
Total Installation Power | ≈153kW | |
Voltage | 220V/380V-50Hz (adjustable) | |
Plant Covering Area | Length: 25m; width: 20m; max height point: 12m |
It is composed of cold aggregate supply system, drum dryer, burning system, hot aggregate elevator, vibrating screen, weighing system, mixing tower, dust collecting system, filler supply system, bitumen supply system, electrical control system and finished asphalt storage bin.
Features1.The original modular design of the mixing plant makes transport and installation work quick and convenient. It can separate extra-large flotsam from usable stuff.
2. The loop belt feeder for the measuring hopper has a frequency-conversion speed regulator which can provide high and low speed. Its original structure facilitates belt change and makes material feeding more fluent, which reduces power consumption.
3. The high-efficiency and heat-preservation drying drum and the special vanes make heat exchange more sufficient. Moreover, the high-efficiency and energy-saving imported burner can use both heavy oil and diesel, which reduces energy consumption.
4. The vibrating screen adopts the linear and completely-closed design with the vibrator placed outside. The sieving efficiency is high, the maintenance and changing of screen is easy, and the imported bearings are more reliable.
5. The main mixing machine designed with European technology has double reducers with a high-speed synchronization capacity. Accurately-weighed asphalt can be directly pumped into the agitating kettle and powder material can be conveyed into the agitating kettle through the helix, which makes agitating more even and speedy. Besides, it has an opening to add wood fiber and an inlet to add used material to be recycled.
