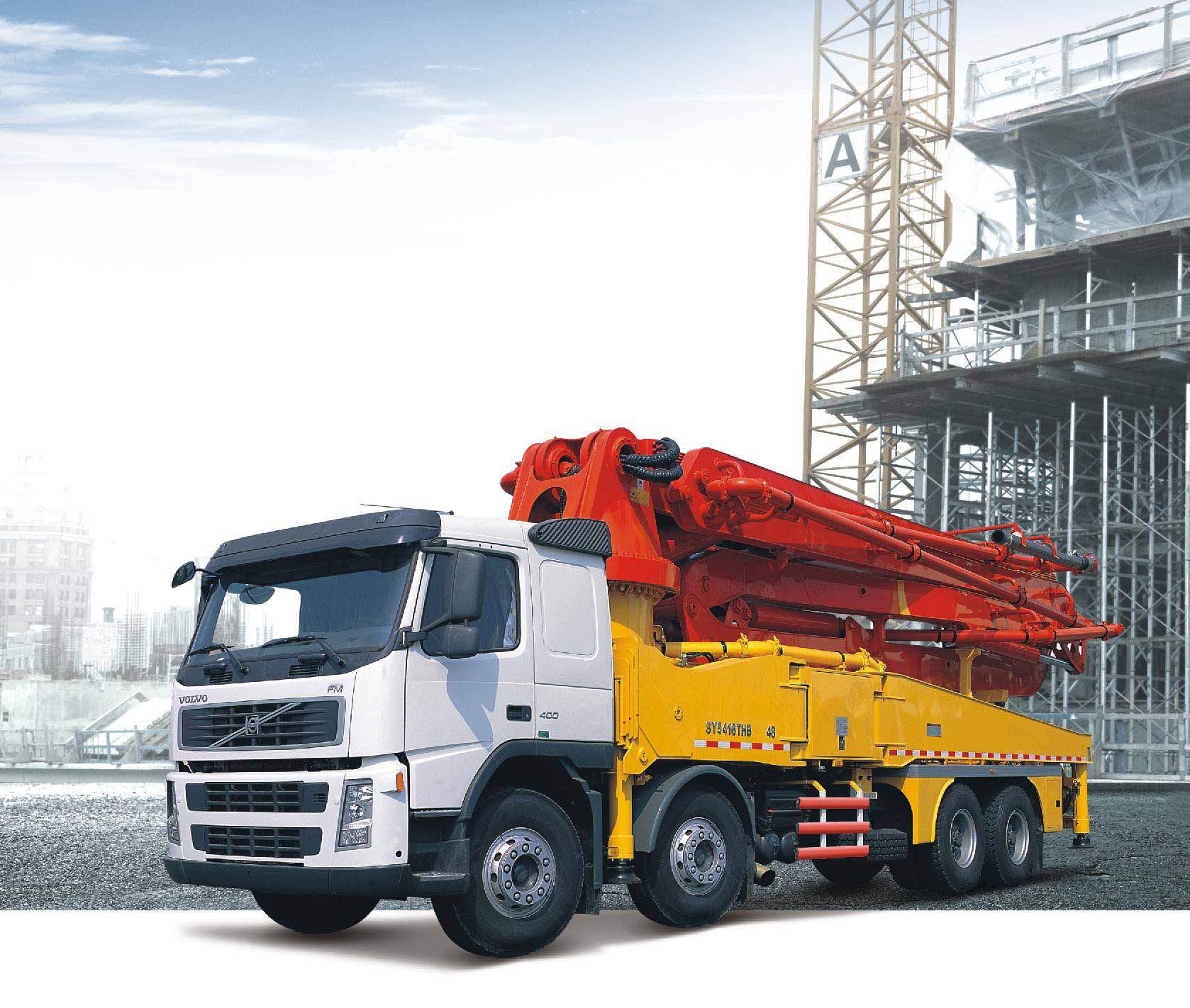

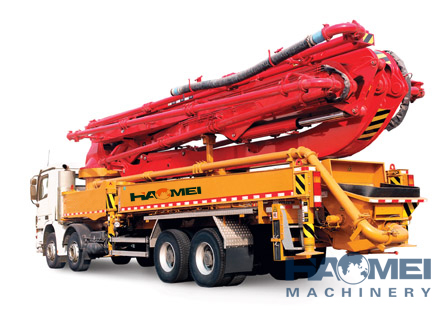

HDT5401THB-48/52 Concrete Pump Truck

Download Product Manual (PDF file)
wade@haomei.biz Get samples and prices !

Cut to size at customers' need !

Add to Product Favorites
Product Overview

Our concrete boom pump trucks range from 17 meter to 61 meter, all offering the vertical and horizontal reach flexibility you need to place in even the most challenging of areas. By choosing a pump below, you can see the specific range, size and features of each option. All of our equipment is inspected regularly to ensure that all equipment meets and exceeds regulatory safety requirements and manufacturers’ recommendations.
The concrete pump truck is a main equipment of construction machinery during commercial concrete transportation and deposition. Concrete pump truck has the advantages of flexibility, high efficiency and good pouring quality, so it plays an important role in infrastructure construction and national economic development
The concrete pump truck is used as one of the main equipments that transports concrete. The vibration and dependability directly influence the progress of construction progress

output in theory  m3/h HDT5401THB-48/5 HDT5420THB-52/5
index of the pump carry capacity Mpa.m3/h 125 125
theoretic pumping pressure Mpa 586 586
bucket volume L 8.5 8.5
height of top surface of bucket mm 700 700
model of distribution valve   1400 1400
max. operation radius m S Valve S Valve
max. operation height m 43.7 47.8
max. operation depth m 47.7 51.8
open height of boom mm 34.3 39.8
distance between front landing legs mm 9065 9400
distance between rear landing legs mm 9780 10295
distance between front & rear landing legs mm 9860 10650
diameter of delivery pipe mm 9470 10310
length of hose pipe m 125 125
rotary range of boom   3 3
quantity of boom   365° 365°
rotary angle of each boom ° 5 5
wire line control distance m 91/180/180/180/270 90/180/180/180/270
romote control distance m 33 33
max. speed km/h 200 200
min. turn radius mm 85 80
brake distance m 12000 12500
approach angle ° 10 10
departure angle ° 16 16
chassis model   11 11
wheel base between the first & the second axle mm HOWO ZZ5437S4667C(HOWO Engine) HOWO ZZ5437S5067C1(HOWO Engine)
wheel base between the second & the third axle mm 1800 1800
wheel base between the third & the fourth axle mm 4600 5000
front tread mm 1350 1350
rear tread mm 2022 2022
max. engine output power kw 1830 1830
max. engine output torque n.m 275(2200r/min) 275(2200r/min)
max, gradient ability % 1500 /(1100~1600 r/min) 1500 /(1100~1600 r/min)
fuel consumption L/100km 37 37
(××)out dimension(L×W×H) mm 40 40
total weight kg 13300×2500×4000 13990×2500×4000
    40000 42000



1. The boom were cloth, assisted in short time
2, Convenient to assembly cloth fast, pumping speed, high efficiency
3, The high degree of automation by one person with a remote control and easy to operate
4, Good mobility and equipment usage rate
