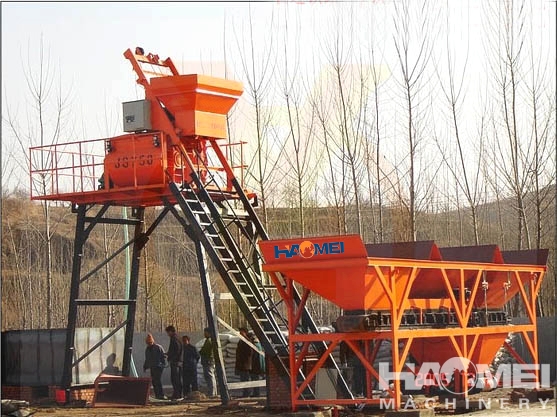

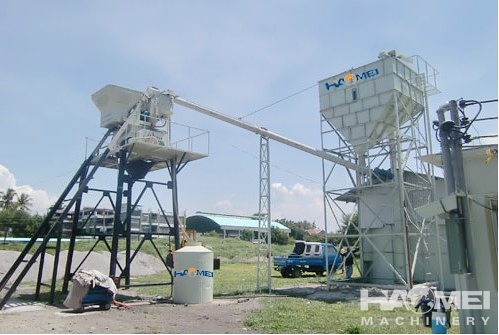

mini concrete batching plant

Download Product Manual (PDF file)
wade@haomei.biz Get samples and prices !

Cut to size at customers' need !

Add to Product Favorites
Share
Product Overview

mini concrete batching plant is a batching plant developed by haomei for small and medium-sized construction projects after careful research. It meets the needs of customers invest in small construction projects well for the following features: modular design, small floor coverage, easy installation and transportation.
mini Concrete batching Plant can be implied from the name, which is a complete set of concrete production equipment with small size,production capacity and specially designed for pint-sized projects has the advantages of lower cost, more spacious space , easier installation,and so on. Without compatible with its miniaturization is the functional maturation, it can be equipped with (semi-)automatic control system.Therefore,it is widely used in more and more ready-mixed and precast concrete factories.
The number of small and medium-sized construction projects is increasing with the obvious development of social economy, and the demand for small-scale concrete mixing plants is increasing day by day. Compared with the traditional stock-sized concrete mixer, the concrete produced by the small-sized concrete batching plant is mixed evenly and in higher quality, which can make the built construction solider and extend its life.

rum   Bucket type
Hzs-25 Hzs-35 Hzs-50 Hzs-75
Theoretical Productivity (m³/h) 25 35 50 75
Mixer Model (mixer discharging capacity) JS500 JS750 JS1000 JS1500
Motor Power (kW) 18.5 30 2×18.5 2×30
Cycle Period (s) 67 72 72 72
Nominal Capacity of Mixer (L) 800 1200 1600 2400
Max.aggregate Size (mm) Φ60 Φ60 Φ60 Φ80
Aggregate Silo Capacity (m³) 3×3 3×5 3×8 3×12
Category of Aggregate (Optional) 3 3 3 3
Powder Lot Bin Capacity (t) 1×50 1×50 1×100 2×100
Material Discharging Height (m) 3.8 4.1 4.1 4.1
Accuracy of Aggregate (kg) (300~1500)±2% (300~1500)±2% (600~3000)±2% (1000~3000)±2%
Accuracy of Cement (kg) (100~300)±1% (100~300)±1% (250~900)±1% (300~1800)±1%
(60~150)±1% (60~150)±1% (80~300)±1% (200~800)±1%
Accuracy of Water (kg)
/ (8~20) (8~20) (15~80)
Accuracy of Addtive (kg) ±1% ±1% ±1%
 Srandard Reference Weight (Ton) ≈15 ≈18 ≈23 ≈30
Installed Capacity (kW) ≈65 ≈75 ≈100 ≈140
Electricity Standard(Optional) 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz



Drawing HZS180 Concrete Batching Plant Drawing Features

Highly automatic: the mini concrete plant has a high intelligent automation function and is an intermittent compulsory mixing station.
Flexible: its compact structure, flexible layout, convenient dis-assembly and transportation make it favored by users.
Customized:Various combinations and loading methods can be realized according to user needs.
Low investment: mini concrete batching plant price is much lower than that of large concrete batching plants. Therefore, it is ideal equipment for small-scale and medium size construction sites, highway, bridge construction etc.

Applications

mini concrete concrete batching plants are widely used in the construction of highways, bridges, power stations, and dams where there are field construction operations. It can be used to mix dry hard, semi-rigid, plastic and various ratio concrete, greatly improve the quality of concrete. It can also be used with dump trucks, and concrete mixer trucks. At the same time, it can be restructured according to the user’s special requirements to meet the user’s needs

Why Choose Haomei Machinery.
  • Reliability: 20 years of experiences in manufacturing concrete batching plants;
  • Markets:Obtain market sharing all over the world.
  • Equipment:Advanced cutting line to provide a wide range of specifications.
  • Production capacity:25 to 180m3/h.can be customized to meet any demand of the products raised by our customers.
  • Employees:Over 25 sale persons to provide good service for customers.
  • Responsibility: Engaged in charity donation and provide eco-friendly products.
Packaging and Delivery of Haomei.

1. Standard seaworthy container 20 GP or 40 GP ,40 HQ according to configuration ;
2. With wires for fastening the machine and frame structure inside the container ;
3. The electric items and installation components packed with strong and standard packages.

FAQ
  • what range size cement Silos you supply?
    The regular size is 30T- 300T, and the biggest Bolted Type Silos can up to 1500T .
  • What kind of spare parts you supply?
    All Batching plant parts, including mechanical processing parts, mixer wearing parts, pneumatic fittings, load cell, belt conveyor parts, roller, motors, bearings, electrical elements & cables, switch board and so on
  • What should I do if experiencing a problem on our batching plant?
    Please email or call us what it happen, show us the symptom details and photos, then our engineer will guide you how to cover it. Our service line will be on line 24/7/365.
