Tower concrete mixing Batching plant

Download Product Manual (PDF file)
wade@haomei.biz Get samples and prices !

Cut to size at customers' need !

Add to Product Favorites
Product Overview

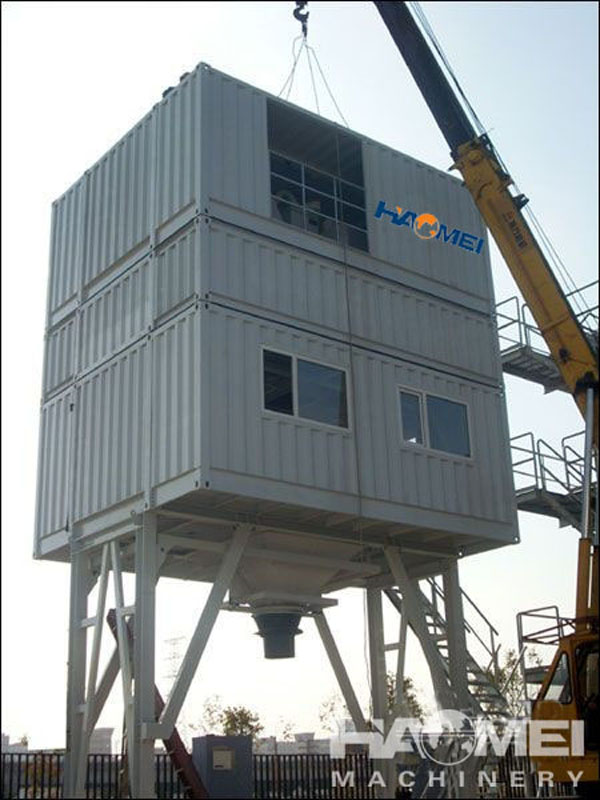

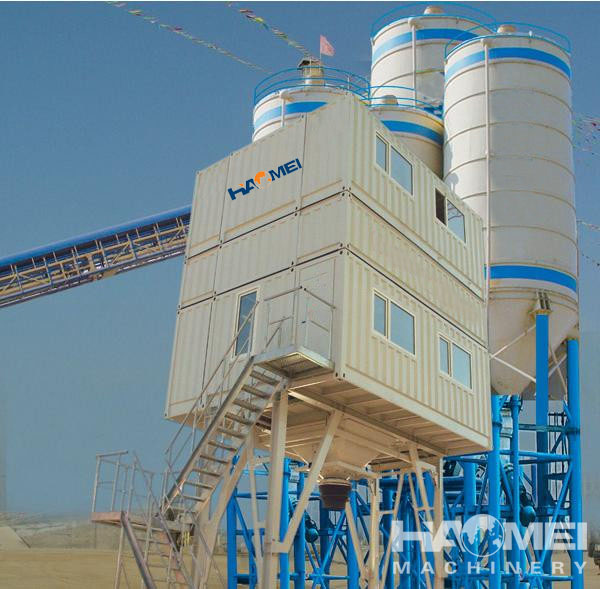

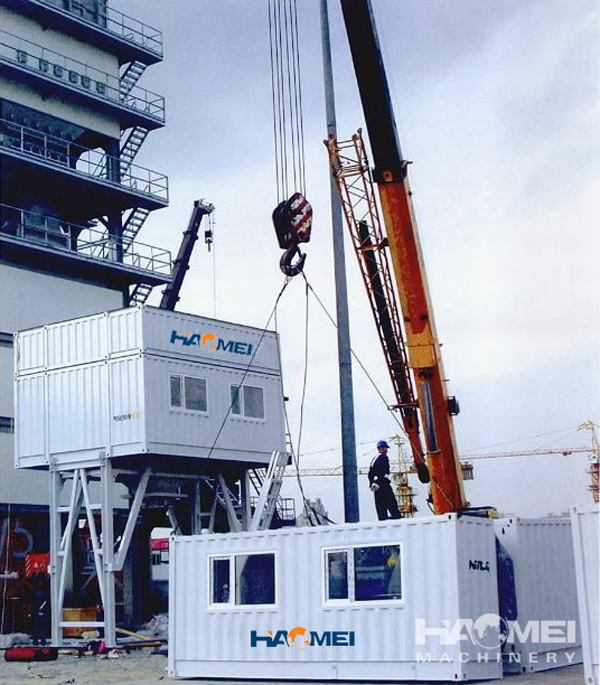

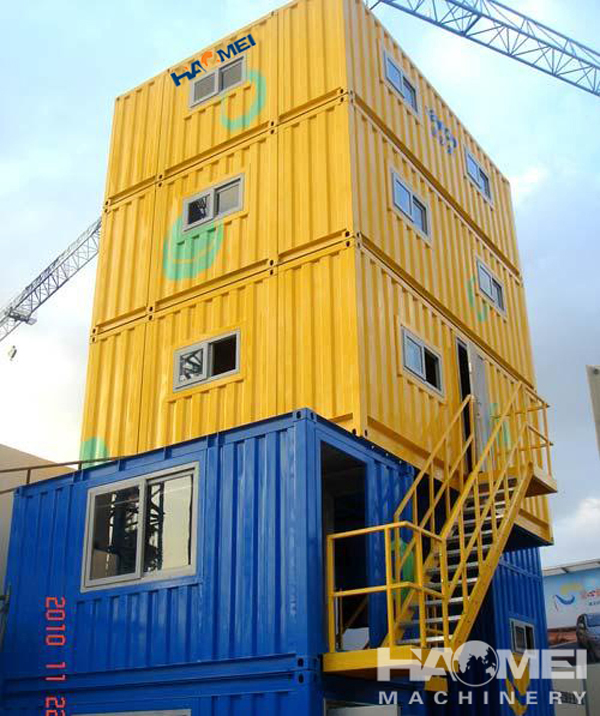

Tower concrete mixing Batching plant Compared to traditional concrete plant, the aggregates metering system used in it reduces four intermediate link, changing to vertical unloading metering. At the same time, this method saves a lot of measurement time and improves production efficiency. In this type, Plant design is based on floor modules or containers depending on model Floor modules and containers are factory made including electric installations which enables Fast installation and commissioning. Aggregate silo volume and quantity can be adjusted according to customer requirements.

Project HZS25 HZS35 HZS50 HZS75
Theoretical Capacity (m3/h) 25 35 50 75
Mixer Model JS500 JS750 JS1000 JS1500
Aggregate Kinds 3 3 4 4
Max. Aggregate Size (mm) 60-80 60-80 60-80 60-80
Aggregate Weight Range (kg) 0-1200 0-1800 0-2500 0-2000*4
Aggregate Weight Accuracy (%) ±2 ±2 ±2 ±2
Cement Weight Range (kg) 0-300 0-400 0-500 0-800
Cement Weight Accuracy (%) ±1 ±1 ±1 ±1
Water Weight Range (kg) 0-100 0-150 0-200 0-350
Water Weight Accuracy (%) ±1 ±1 ±1 ±1
Discharging Height (mm) 3800 3800 3800 3800


Drawing HZS180 Concrete Batching Plant Drawing Features

Skip hopper type concrete batching plant has the advantages of small area, flexible installation and convenient movement. It is very popular with users.
The bucket has a wide range of lifting, and it has less requirements for the types and characteristics of the materials. It can hohist not only general powdery and small granular materials, but also the material with greater abrasiveness.
The skip hopper type concrete batching plant has good sealing performance, less environmental pollution, and good operational reliability.
Advanced design principles and processing methods ensure the reliability of the entire machine.
The skip hopper system of this concrete batching plant is stable and reliable.


Were widely used in construction projects, ready mix concrete production and concrete prefabrication factory.

Why Choose Haomei Machinery.
  • Reliability: 20 years of experiences in manufacturing concrete batching plants;
  • Markets:Obtain market sharing all over the world.
  • Equipment:Advanced cutting line to provide a wide range of specifications.
  • Production capacity:25 to 180m3/h.can be customized to meet any demand of the products raised by our customers.
  • Employees:Over 25 sale persons to provide good service for customers.
  • Responsibility: Engaged in charity donation and provide eco-friendly products.
Packaging and Delivery of Haomei.

1. Standard seaworthy container 20 GP or 40 GP ,40 HQ according to configuration ;
2. With wires for fastening the machine and frame structure inside the container ;
3. The electric items and installation components packed with strong and standard packages.

  • what range size cement Silos you supply?
    The regular size is 30T- 300T, and the biggest Bolted Type Silos can up to 1500T .
  • What kind of spare parts you supply?
    All Batching plant parts, including mechanical processing parts, mixer wearing parts, pneumatic fittings, load cell, belt conveyor parts, roller, motors, bearings, electrical elements & cables, switch board and so on
  • What should I do if experiencing a problem on our batching plant?
    Please email or call us what it happen, show us the symptom details and photos, then our engineer will guide you how to cover it. Our service line will be on line 24/7/365.
HZS35 Concrete Batching Plant video list
