Stationary Stabilized Soil Mixing Plant

Download Product Manual (PDF file)
wade@haomei.biz Get samples and prices !

Cut to size at customers' need !

Add to Product Favorites
Product Overview

Stationary stabilized soil mixing plant is suitable for large scale continuous operation of the stable layer of highway construction. The aggregate, power and water adopt frequency conversion to control the rate of flow, which achieves high measuring accuracy and stability. The quantity of aggregate storage bins can be changed from four to six according to the needs of the project.
As one of the leading professional manufacturers and exporters of stabilized soil mixing plant, Haomei machinery adopts the latest technology in the world, and has made great contributions to many important projects at home and abroad. In addition, not only our products, but our company and factory has won good reputtation and high praise from new and old customers, such as Australia, Argentina, Paraguay, Qatar, etc.

ype WCB300 WCB400 WCB500 WCB600
Theoretical Productivity 300T/h 400T/h 500T/h 600T/h
Gross Power 98KW 118KW 150KW 200KW
Gross Weight 30T 35T 40T 50T
Max Aggregate Size 60mm 60mm 60mm 60mm
Aggregate Weighing Accuracy ±2% ±2% ±2% ±2%
Cement Weighing Accuracy ±1% ±1% ±1% ±1%
Water Supply Accuracy ±1.5% ±1.5% ±1.5% ±1.5%
Covering Area (L x W) 44x5m 50x5m 50x5m 52x6m

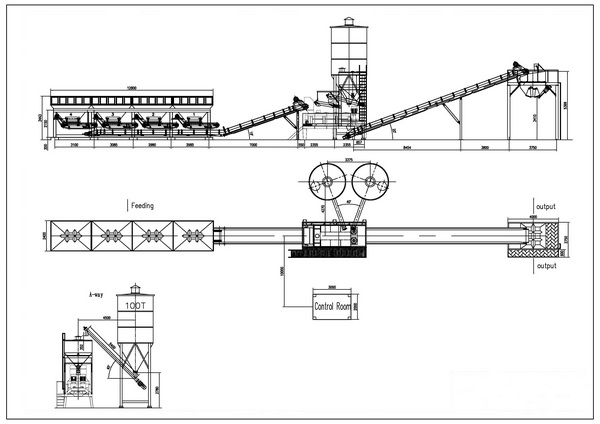

Drawing stationary-stabilized-soil-mixing-plant Layout Drawing Features

1.The module-typed structure is convenient for assembly, disassembly and transportation.
2.The application of dual horizontal axes forced mixer ensures uniform mixing with high quality and high reliability.
3.The raw material belt conveyor and finished material belt conveyor with foldable feature are convenient for installation and transportation. The equipped electric roller can be easily operated and maintained.
4.Different materials have separate weighing system, which can ensure accurate measurement and proportion.
5.Pneumatic system with butterfly valve can be operated easily. It ensures discharge smoothly, which reduces material supply time.
6.The cement and coal ash is conveyed by screw conveyor to avoid the congestion and environment pollution.
7.The stabilized soil batching plant adopts electric control system. PLC programmable computer can be controlled manually and automatically with reliable performance and easy operation and maintenance.
8.The failure can be monitored through computer, which improves the automation of the equipment. That can largely reduce labor intensity and labor input.

Why Choose Haomei Machinery.
  • Technologies:Top polishing technology guarantees good luster and smooth surface.
  • Markets:Obtain market sharing all over the world.
  • Equipment:Advanced cutting line to provide a wide range of specifications.
  • Production capacity:25 to 180m3/h.can be customized to meet any demand of the products raised by our customers.
  • Employees:Over 25 sale persons to provide good service for customers.
  • Responsibility: Engaged in charity donation and provide eco-friendly products.
Packaging and Delivery of Haomei.

1. Standard seaworthy container 20 GP or 40 GP ,40 HQ according to configuration ;
2. With wires for fastening the machine and frame structure inside the container ;
3. The electric items and installation components packed with strong and standard packages.

  • Concrete-plant Packaging
  • Concrete-plant Packaging
  • Concrete-plant Packaging
  • Concrete-plant Packaging
