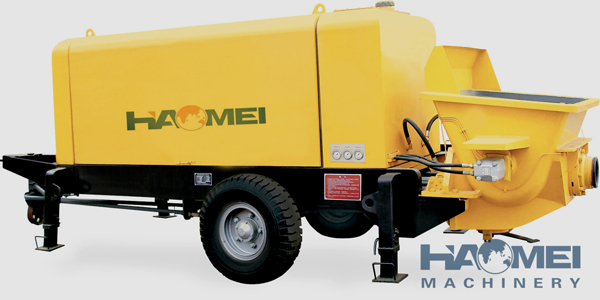

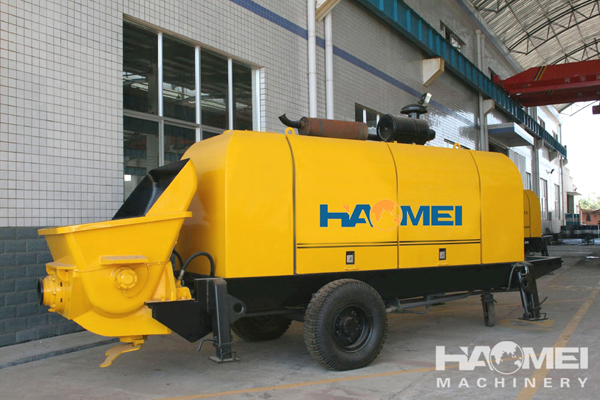

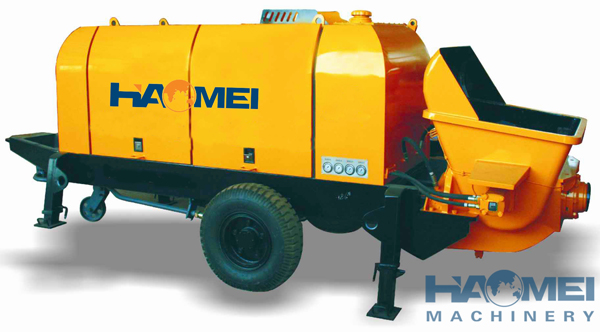

HBT90S1821-200 Trailer Concrete Pump

Download Product Manual (PDF file)
wade@haomei.biz Get samples and prices !

Cut to size at customers' need !

Add to Product Favorites
Share
Product Overview

Haomei HBT90 trailer concrete pumps are concrete pumping machines, including S-valve series of high-pressure concrete pumps, Z-gate-valve series of medium-pressure concrete pumps and D-butterfly-valve series of low-pressure concrete pumps.
Concrete Trailer Pump is a kind of gravel, sand, cement and water by mixing then stiring together, and to achieve concrete pumping machinery. Combining the conventional blenders with concrete trailer pump together, the concrete pump trailer is a particularly suitable site mixing and pumping of concrete construction equipment. Depending on the configuration of the mixer stirring way, concrete trailer pump can be divided into: roller concrete trailer pump and compulsory concrete trailer pump; Depending on the walk way, the concrete trailer pump can be divided into: trailer and vehicle-mounted pump.

Specification

Value

Theory Concrete Output (Low / High Pressure)(m3/h)

90/60

"Concrete Pressure (Low / high pressure)"(Mpa)

21/10.8

Hydraulic system pressure(Mpa)

32

Rotation speed(r/min)

1480

High / low pressure switch

Yes

Distribution valve(S)

valve

Pumping cylinder diameter/ Stroke(mm)

200/1800

Main oil pump discharge(ml/r)

2×190

Diesel engine(kw)

2×110

Voltage/ Frequency(V/Hz)

380/50

Hydraulic tank volume(L)

700

Height of adding material(mm)

≤1450

Hopper volume(m3)

0.7

Total mass(kg)

7000

Concrete slump(mm)

80-230

Aclinic Delivery distance(m)

1300

Theory vertical pumping height(m)

280

Dimension: L*W*H(mm)

6400*2480*235

>



Features

1. The power system adopts domestic famous brand electric motor.
2. Using three pumps system, hydraulic circuit does not interfere with each other, the system operation has high stability and high reliability.
3. The anti pump function can eliminate the plugging problems and is expected to keep the material for a short period of time without running the machine.
4. Advanced S pipe distribution valve can automatically compensates the wearing gap, has good sealing performance.
5. Wear-resistant alloy glasses plate and cutting ring ensures long service life.
6. Long stroke material cylinder can prolong the service life of the cylinder and piston.
7. Optimization designed hopper has better suction performance, easy to clean.
8. The automatic centralized lubrication system effectively ensures the lubrication during machine operation.
9. Humanized design of products makes the operation more easy and maintenance more convenient.

Why Choose Haomei Machinery.
  • Technologies:Top polishing technology guarantees good luster and smooth surface.
  • Markets:Obtain market sharing all over the world.
  • Equipment:Advanced cutting line to provide a wide range of specifications.
  • Production capacity:25 to 180m3/h.can be customized to meet any demand of the products raised by our customers.
  • Employees:Over 25 sale persons to provide good service for customers.
  • Responsibility: Engaged in charity donation and provide eco-friendly products.
Packaging and Delivery of Haomei.

1. Standard seaworthy container 20 GP or 40 GP ,40 HQ according to configuration ;
2. With wires for fastening the machine and frame structure inside the container ;
3. The electric items and installation components packed with strong and standard packages.

  • Concrete-plant Packaging
  • Concrete-plant Packaging
  • Concrete-plant Packaging
  • Concrete-plant Packaging
