Concrete Mixer Truck 9m³ -haomei machinery-

Product Overview Features and Applications Strength Packaging and Delivery

Product Overview

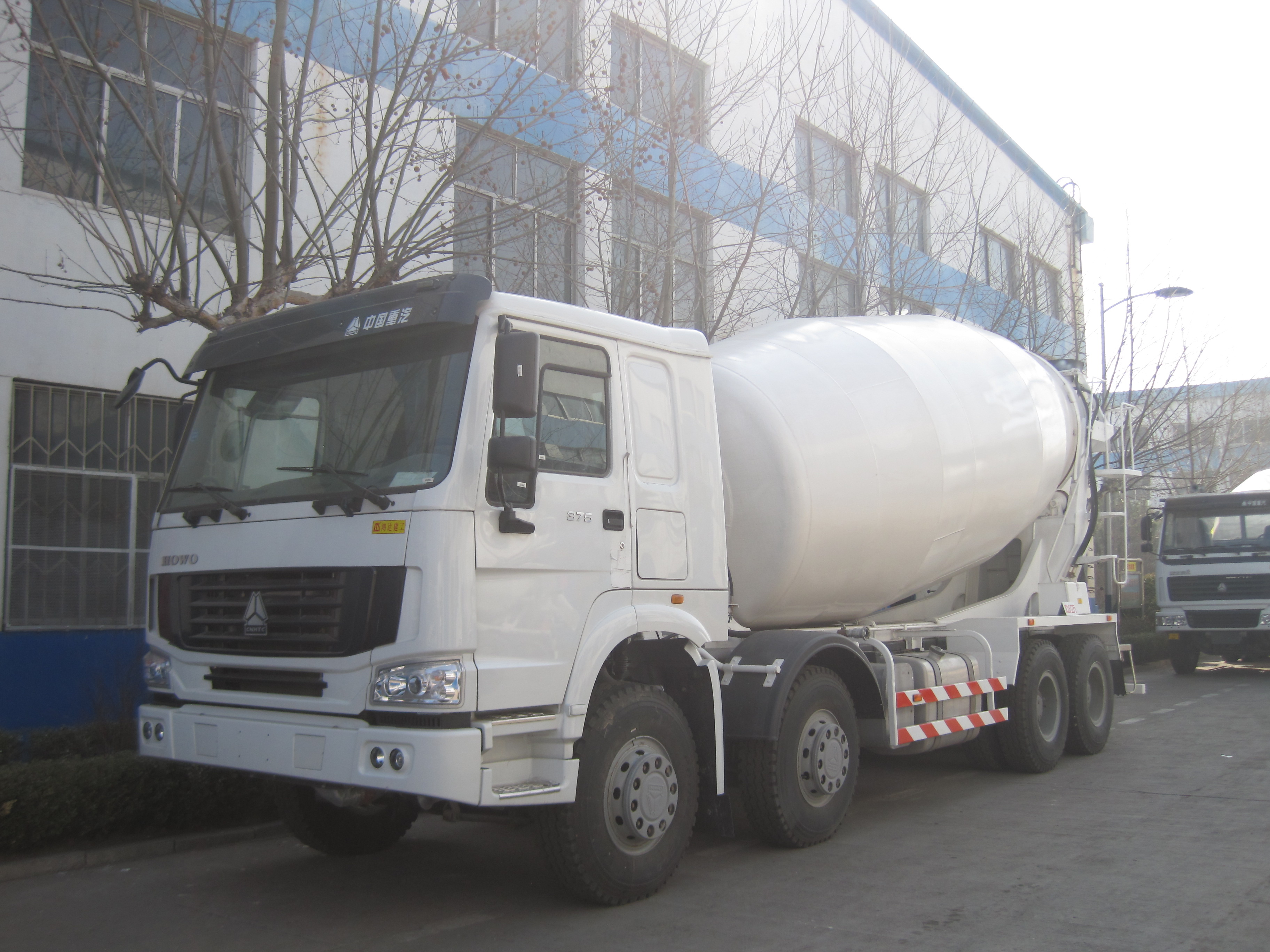

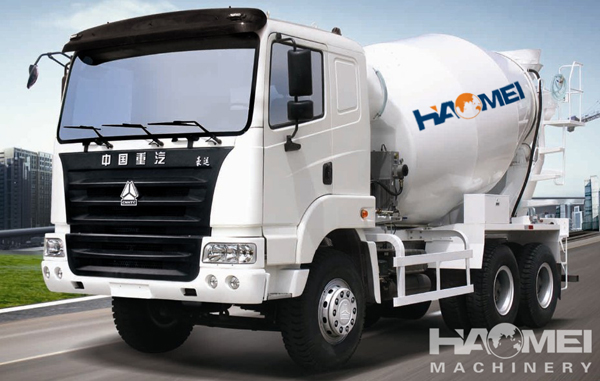

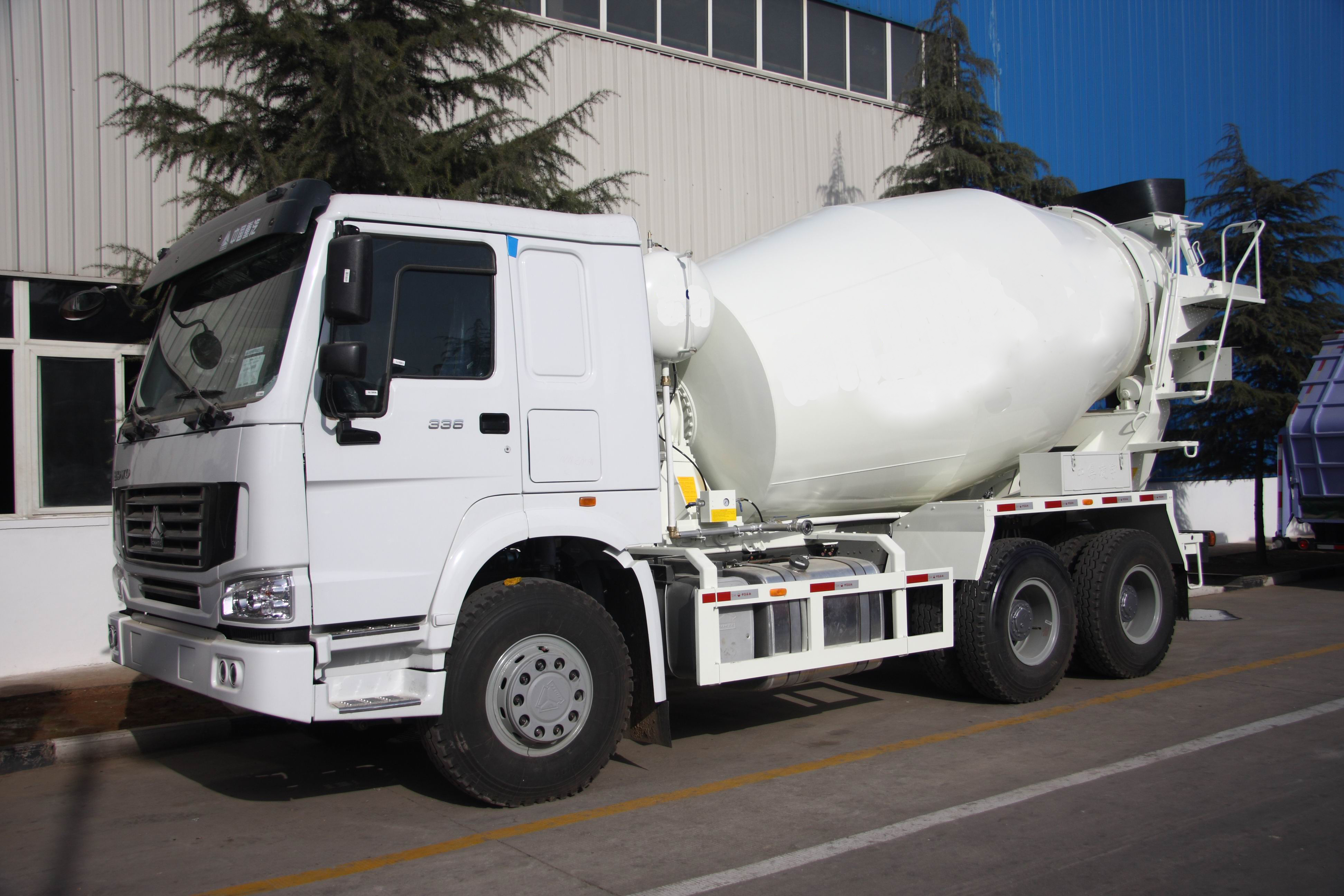

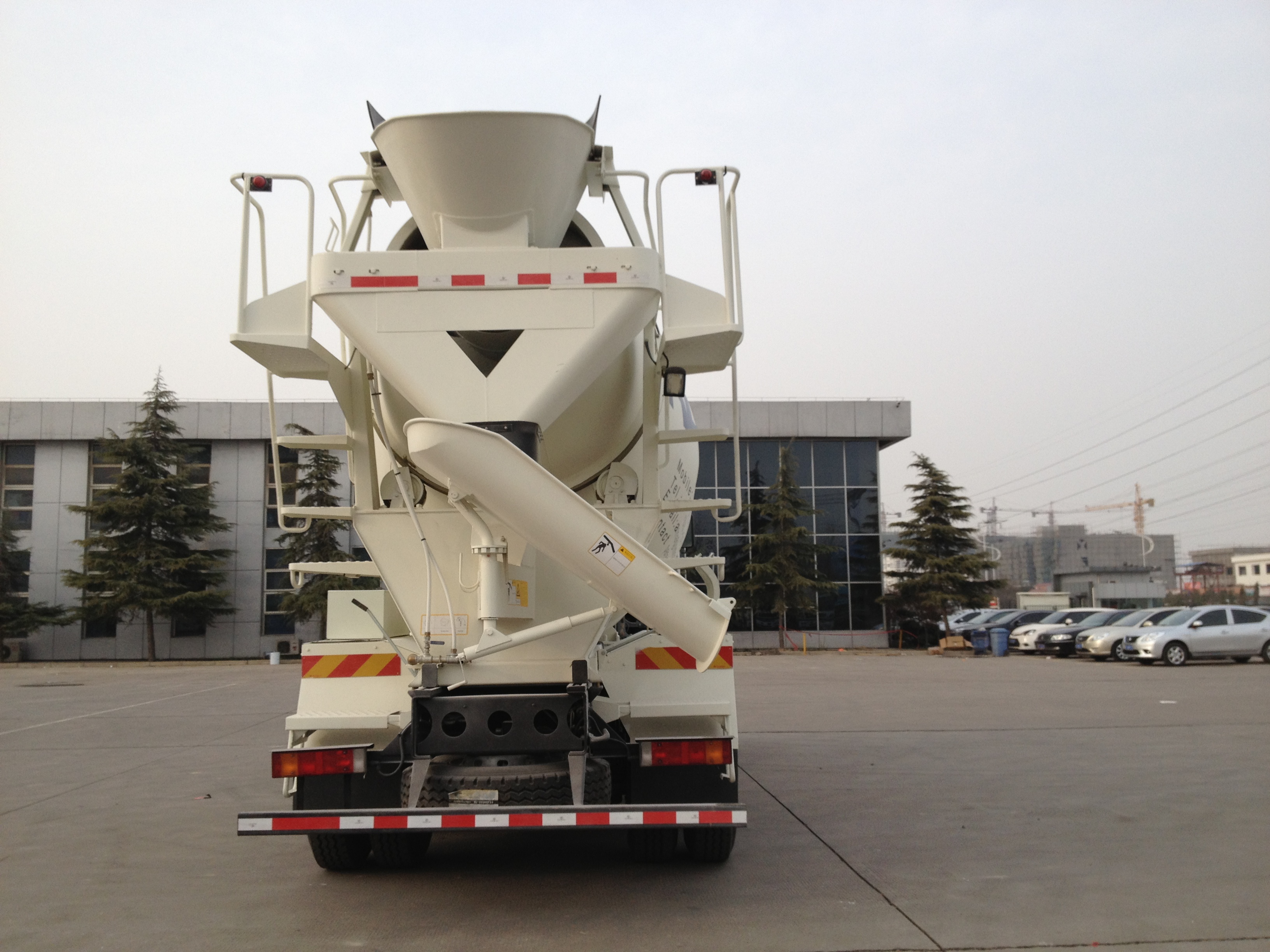

1. HAOMEI serial HM9-D Concrete Mixer Truck 9m³ is strong well designed equipment meant for transporting concrete / mortar from concrete batching plant directly to the place where it is to be poured, effectively delay concrete coagulations, avoid concrete stratification and eduction, and ensures construction quality and speed.
2. Haomei Concrete Truck Mixer(concrete mixer truck) has a wide range of application especially for mass concreting works like Construction of Canals, Bridges, Highways, Dams, Multistoried & Industrial Buildings, Factories, and Airports for ready mixed Concrete Works.

Model	HM9-D
Specification	Value
Mixing Capacity	9m³
Tank Volume	14.7m³
Feeding Speed	≥3.5m³/min
Discharging Speed	≥3m³/min
Residual Ratio of Discharging	≤0.5%
Water Supply System	Air pressure
Water Tank Volume	300L
Overall Dimension	905024963750mm
Chassis Model	HOWO
Clutch	φ430 Monolithic dry type
Min Ground Clearance	314mm
Max Speed	90km/h
Engine Max Output Power	276kw
Emission Standard	Euro Ⅲ
Rated Load	13500kgs
Overall Weight	25000kgs
Wheelbase	3825+1350mm

Features

1. High-intensity drum material, featuring better wear-resistance and long service life;
2. Optimized mixing blades, low material residue;
3. High-quality parts, reliable running;
4. Excellent performance and convenient operation;
5. Imported original hydraulic system

Applications

Wide range of application especially for mass concreting works like Construction of Canals, Bridges, Highways, Dams, Multistoried & Industrial Buildings, Factories, and Airports for ready mixed concrete works.

Why Choose Haomei Machinery.

Technologies:Top polishing technology guarantees good luster and smooth surface.
Markets:Obtain market sharing all over the world.
Equipment:Advanced cutting line to provide a wide range of specifications.
Production capacity:25 to 180m3/h.can be customized to meet any demand of the products raised by our customers.
Employees:Over 25 sale persons to provide good service for customers.
Responsibility: Engaged in charity donation and provide eco-friendly products.

Packaging and Delivery of Haomei.

1. Standard seaworthy container 20 GP or 40 GP ,40 HQ according to configuration ;
2. With wires for fastening the machine and frame structure inside the container ;
3. The electric items and installation components packed with strong and standard packages.
