Product Overview

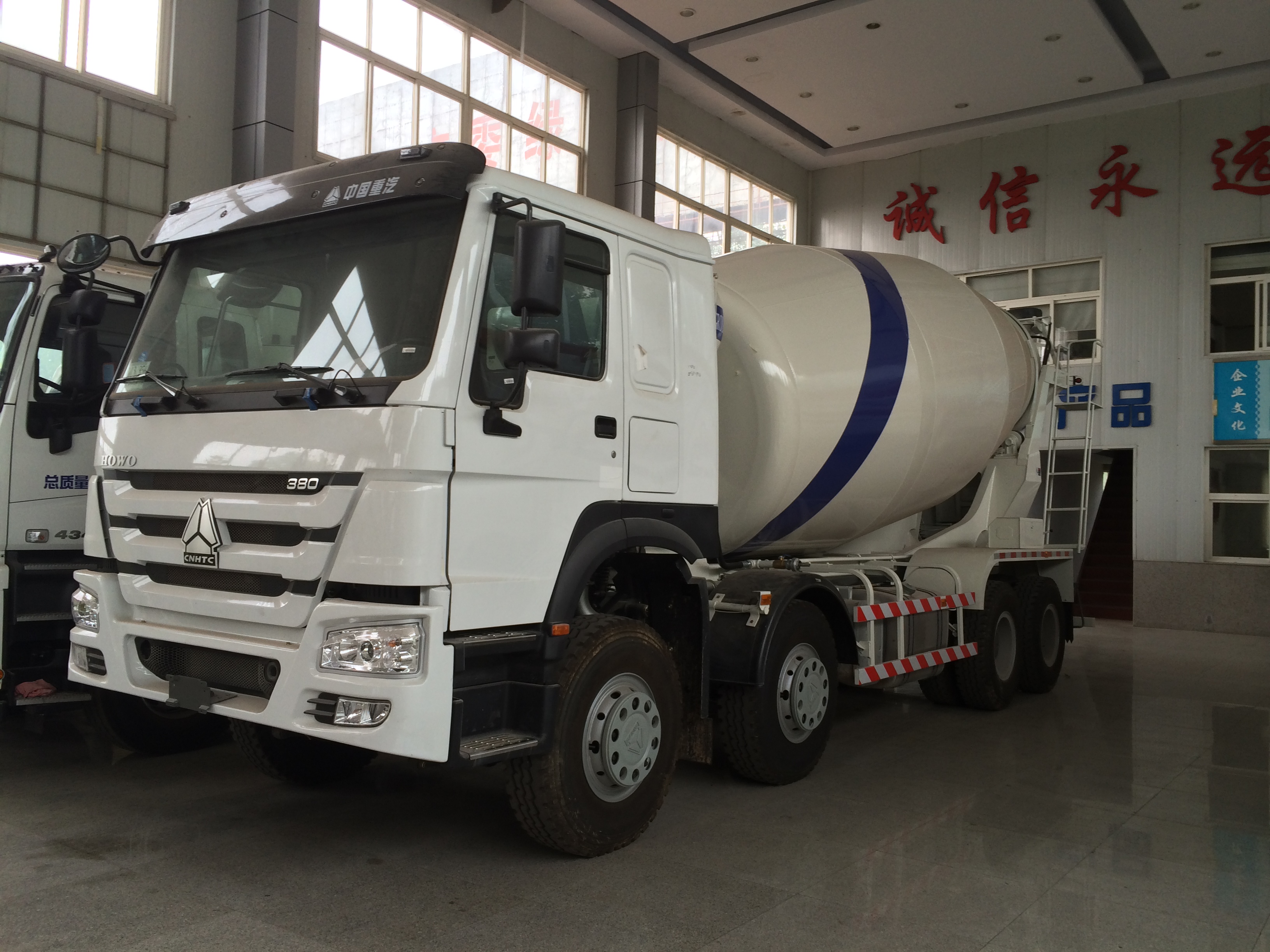

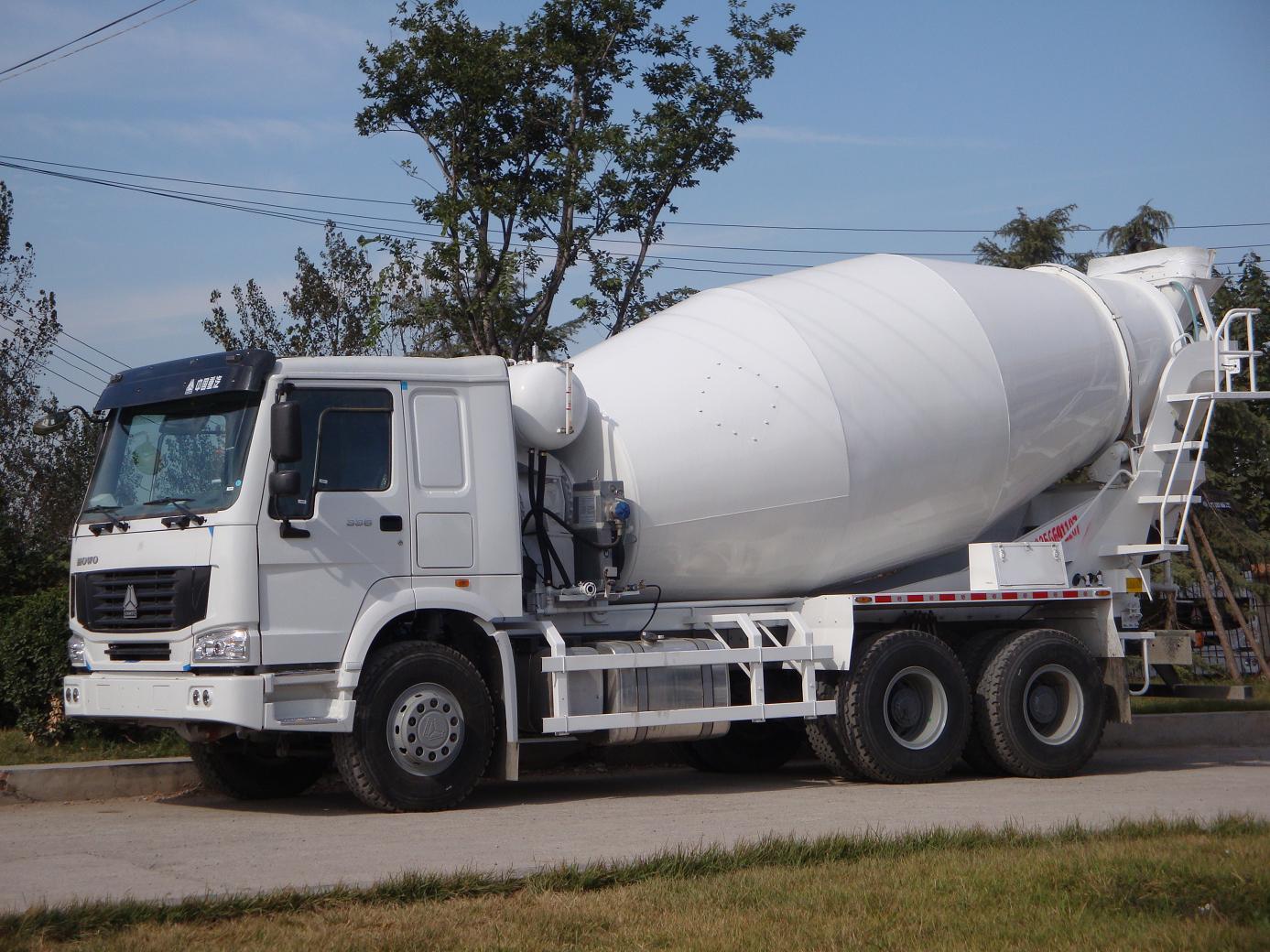

HM10-D Concrete Mixer Truck indicates that the concrete mixing drum is installed on the chassis. The mixer drum is used to blend and transport ready-mixed concrete. During transportation always keeps mixing drum rotation to avoid concrete separation. After the delivery of finished concrete, usually rinsed with water inside the mixer drum to prevent concrete from hardening and avoid harden concrete taking much space of concrete mixing drum. As we all know, the concrete mixing truck is composed of two parts: chassis and upper parts – mixer drum. While, there are some important accessories of haomei truck mounted concrete mixers, including power take off, mixer drum, gearbox, hydraulic system, controlling mechanism, cleaning system.
2. Haomei Concrete Truck Mixer(concrete mixer truck) has a wide range of application especially for mass concreting works like Construction of Canals, Bridges, Highways, Dams, Multistoried & Industrial Buildings, Factories, and Airports for ready mixed Concrete Works.

Model	HM10-D
Specification	Unit	Value
Mixing Capacity	m³	10
Tank Volume	m³	17.05
Feeding Speed	m³/min	≥3.5
Discharging Speed	m³/min	≥3
Residual Ratio of Discharging	%	≤0.5%
Water Supply System		Air pressure
Water Tank Volume	L	300
Overall Dimension	mm	905024963750
Chassis Model		HOWO
Clutch	φ	φ430 Monolithic dry type
Min Ground Clearance	mm	314
Max Speed	km/h	90
Engine Max Output Power	kw	276
Emission Standard		Euro Ⅲ
Rated Load	kgs	13500
Overall Weight	kgs	25000
Wheelbase	mm	3825+1350

Features

1. High-intensity drum material, featuring better wear-resistance and long service life;
2. Optimized mixing blades, low material residue;
3. High-quality parts, reliable running;
4. Excellent performance and convenient operation;
5. Imported original hydraulic system

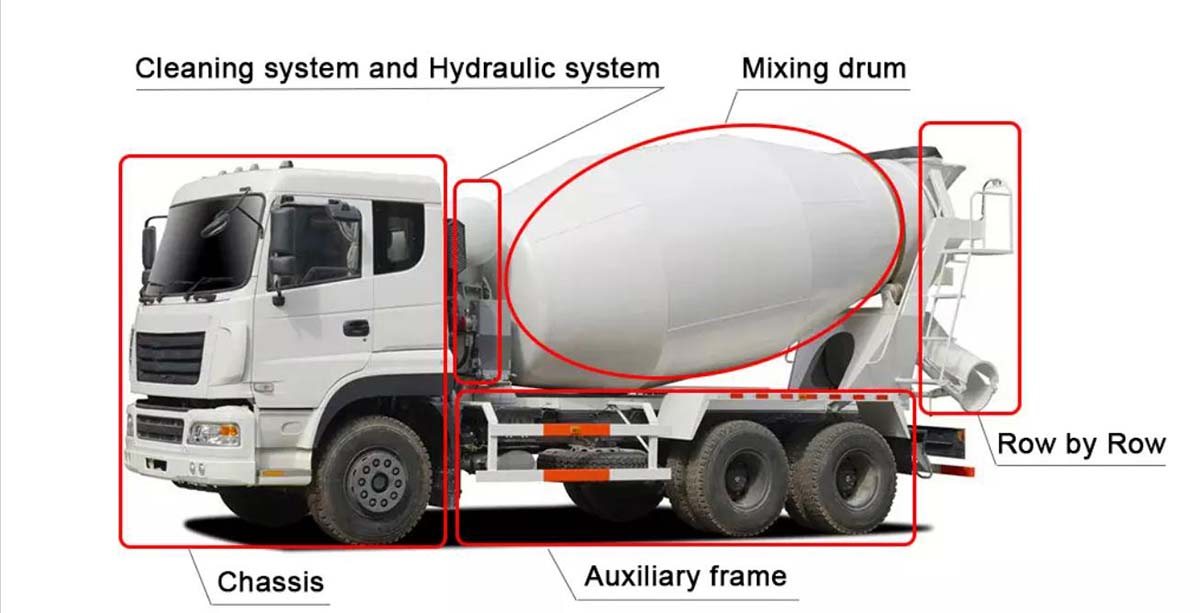

Truck Mounted Concrete Mixer’s Systems

Truck Mounted Concrete Mixer’s Systems
1. Chassis system. It is one of the main components of concrete truck. The transporting function of mix truck is realized through chassis.
2. Hydraulic Transmission system. It can transfer the engine power taking from PTO into hydraulic energy which can be converted into mechanical energy through hydraulic motor. It can provide energy for concrete mixing drum rotation.
3. Concrete mixer drum. Mixing drum is the key component of truck mounted concrete mixer product. It is the carrier of storing concrete, which can play a decisive role in prevent the phenomena of concrete solidification and segregation. There are mixing blades inner concrete mixer drum, which are used to stir and discharging concrete mixture.
4. Discharging system. The discharging system is composed of main discharging chute, auxiliary discharging system, locking lever. The auxiliary discharge chute extends of the length of the main unloading groove.
5. Cleaning system. It is mainly made up of pressed water tank, water gun, water pipe and valve. The main function of using air water supply is to flush the mixing bowl and discharging groove after the concrete mixture unloads and to prevent concrete from bonding.
6. Auxiliary frame:The whole auxiliary frame consists of main beam, front support frame and backstage support frame. The truck is the main load-bearing part and the loading is almost always supported and passed to the chassis when operation. The auxiliary frame also plays a role in easing the bumpy road and reduce the impact load of deceleration formation.
7. Operation system. The operating system consists of the controller, linkage shaft, flexible shaft and connecting rod mechanism, mainly controlling the rotating speed and rotation direction of the mixing drum.
8. The supporting roller system. It is the connection part of mixing tank and auxiliary frame, which is mainly supports the cylinder body.
9. Feeding system. It is manly composed of feeding hopper and bracket. It is made of anti-weary material due to large impact. The bracket is to reduce the impact.
10. Circuit system: It mainly refers to the whole circuit of the concrete mixer truck, including the rear light, side sign lamp, corridor lamp, cooling fan motor and so on.

Applications

Wide range of application especially for mass concreting works like Construction of Canals, Bridges, Highways, Dams, Multistoried & Industrial Buildings, Factories, and Airports for ready mixed concrete works.

Why Choose Haomei Machinery.

Technologies:Top polishing technology guarantees good luster and smooth surface.
Markets:Obtain market sharing all over the world.
Equipment:Advanced cutting line to provide a wide range of specifications.
Production capacity:25 to 180m3/h.can be customized to meet any demand of the products raised by our customers.
Employees:Over 25 sale persons to provide good service for customers.
Responsibility: Engaged in charity donation and provide eco-friendly products.

Packaging and Delivery of Haomei.

1. Standard seaworthy container 20 GP or 40 GP ,40 HQ according to configuration ;
2. With wires for fastening the machine and frame structure inside the container ;
3. The electric items and installation components packed with strong and standard packages.
