HDT5350THB Concrete Pump Truck

Download Product Manual (PDF file)
wade@haomei.biz Get samples and prices !

Cut to size at customers' need !

Add to Product Favorites
Share
Product Overview

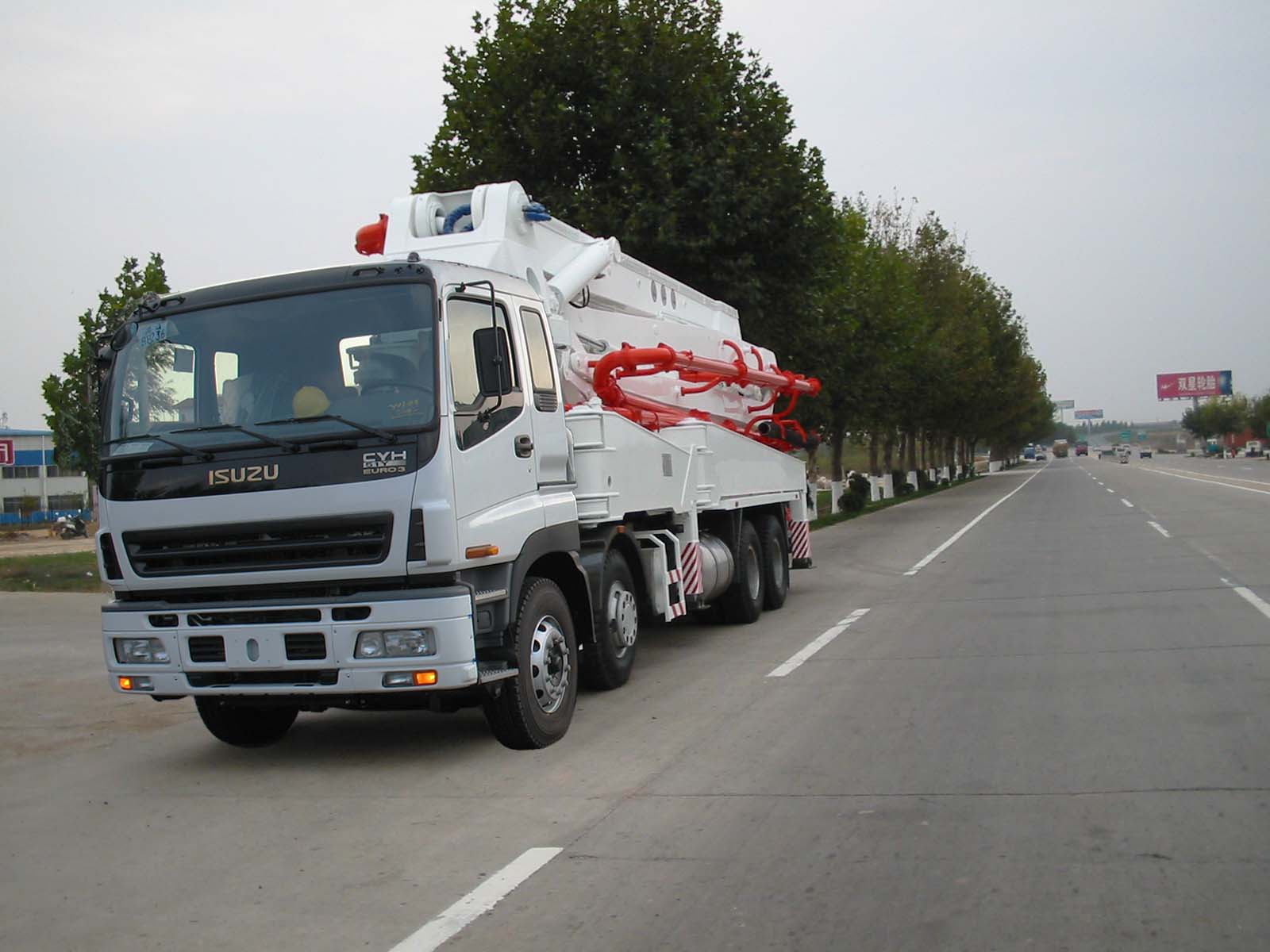

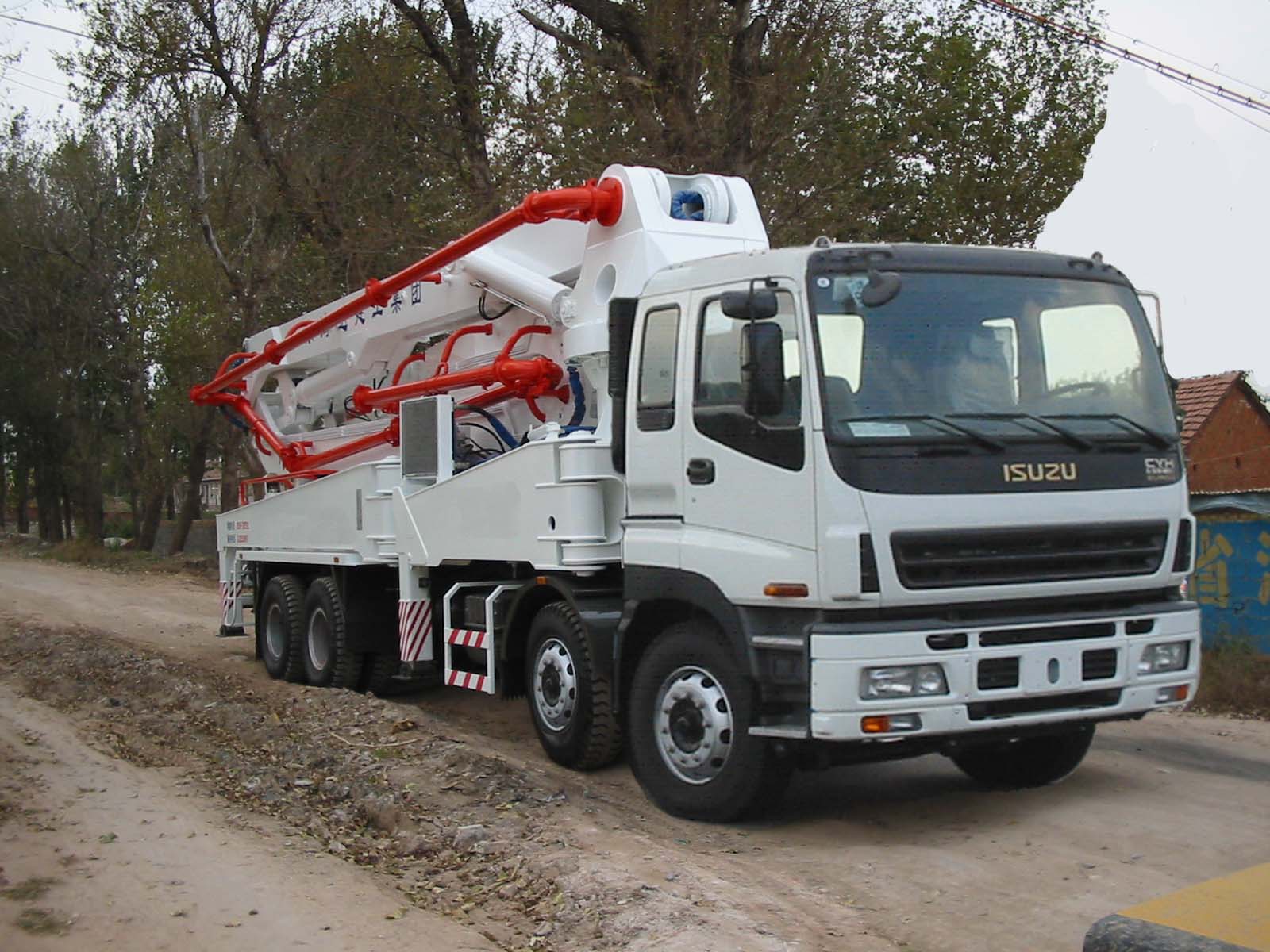

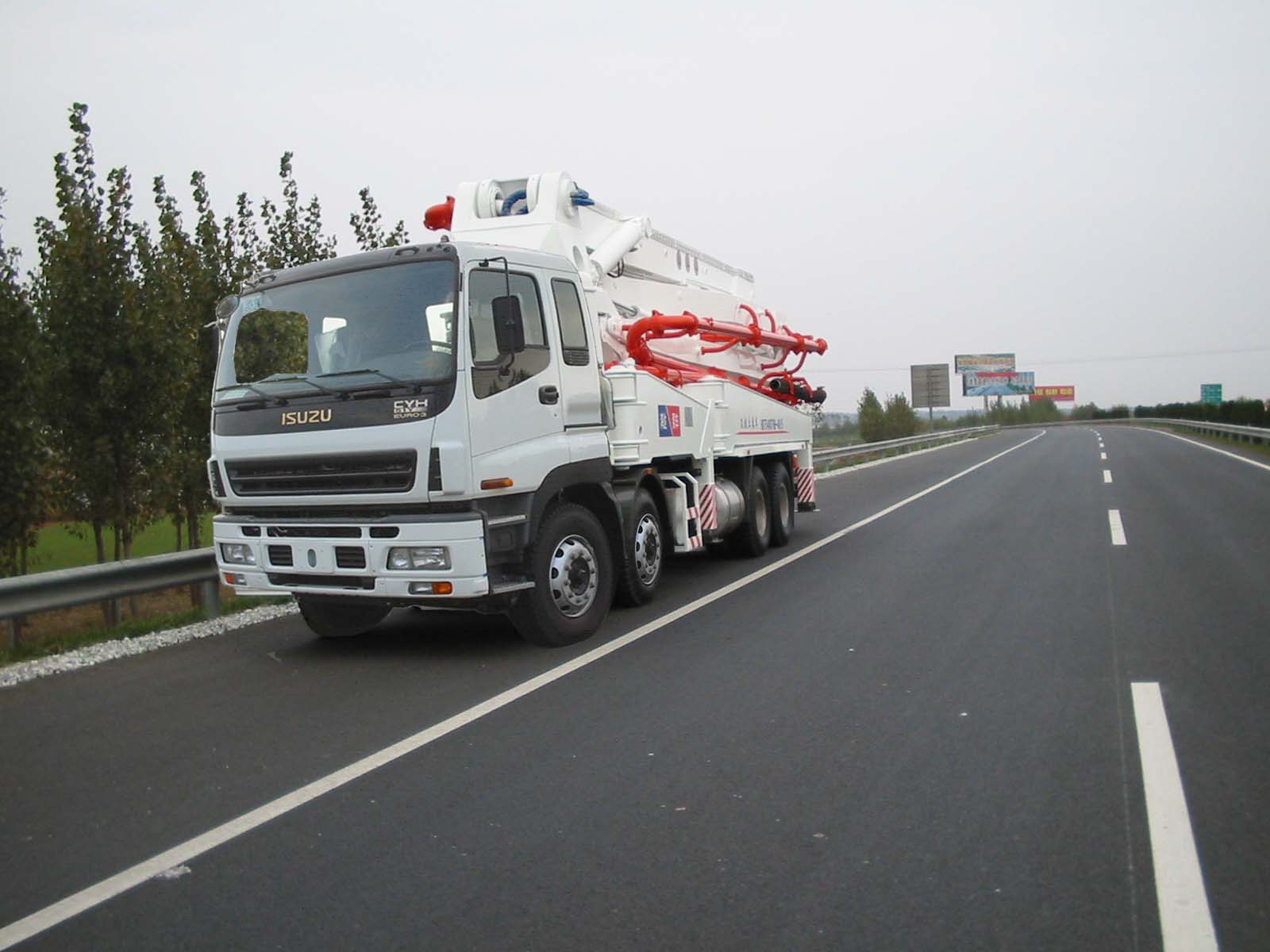

The Haomei HDT5350THB-42/4 truck-mounted concrete pump has improved maneuverability and weight indices for 4 axle chassis. It is equipped with the OSS system, which allows you to work in a limited workspace. The concrete pump length is more than 38 meters, and it weighs less than 35 tons.

name unit HDT5350THB-42/4
output in theory m3/h 125
index of the pump carry capacity Mpa.m3/h 586
Theoretic pumping pressure Mpa 8.5
bucket volume L 700
height of top surface of bucket mm 1400
model of distribution valve    S Valve
max. operation radius m 38
max. operation height m 41.8
max. operation depth m 29
open height of boom mm 8600
distance between front landing legs mm 8820
distance between rear landing legs mm 8500
distance between front & rear landing legs mm 8490
diameter of delivery pipe mm 125
length of hose pipe m 3
rotary range of boom    365°
quantity of boom    4
rotary angle of each boom ° 92/180/180/240
wire line control distance m 33
romote control distance m 200
max. speed km/h 85
min. turn radius mm 12100
brake distance m 10
approach angle ° 16
departure angle ° 11
chassis model    HOWO ZZ5437S4667C
wheel base between the first & the second axle mm 1800
wheel base between the second & the third axle mm 4600
wheel base between the third & the fourth axle mm 1350
front tread mm 2022
rear tread mm 1830
max. engine output power kw 275(2200r/min)
max. engine output torque n.m 1500 /(1100~1600 r/min)
max, gradient ability % 37
fuel consumption L/100km 38
(××)out dimension(L×W×H) mm 13650×2490×3960
total weight kg 35000



Features

1. The boom were cloth, assisted in short time
2, Convenient to assembly cloth fast, pumping speed, high efficiency
3, The high degree of automation by one person with a remote control and easy to operate
4, Good mobility and equipment usage rate

Why Choose Haomei Machinery.
  • Technologies:Top polishing technology guarantees good luster and smooth surface.
  • Markets:Obtain market sharing all over the world.
  • Equipment:Advanced cutting line to provide a wide range of specifications.
  • Production capacity:25 to 180m3/h.can be customized to meet any demand of the products raised by our customers.
  • Employees:Over 25 sale persons to provide good service for customers.
  • Responsibility: Engaged in charity donation and provide eco-friendly products.

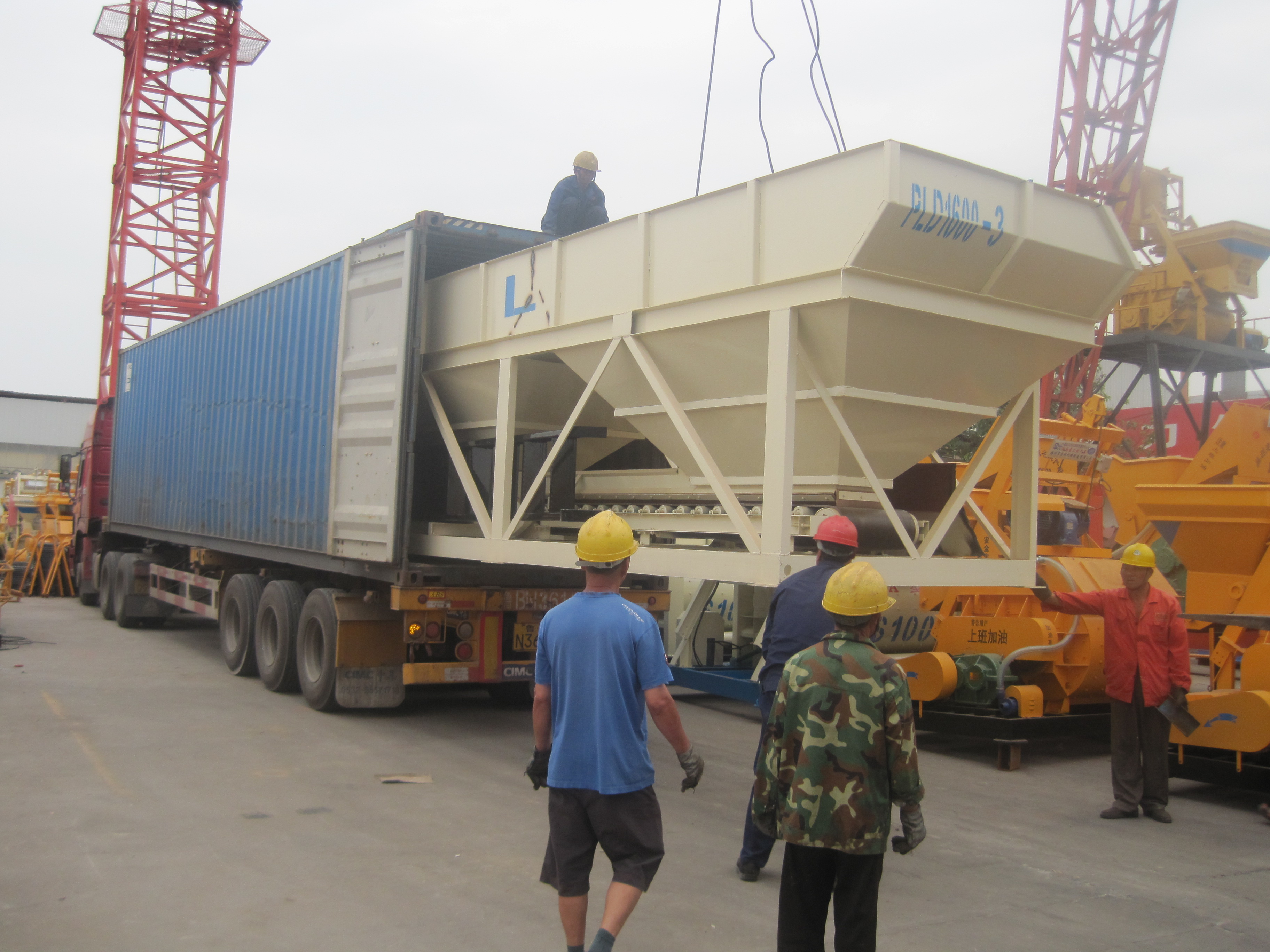

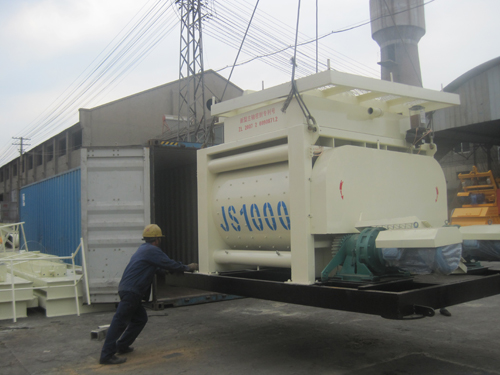

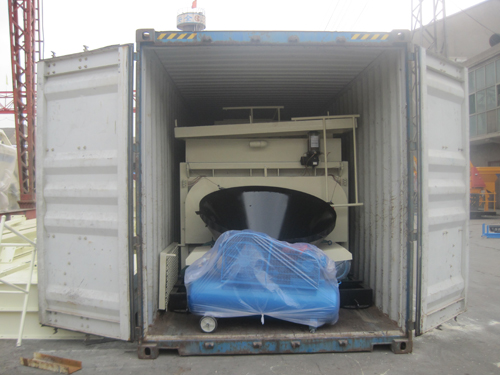

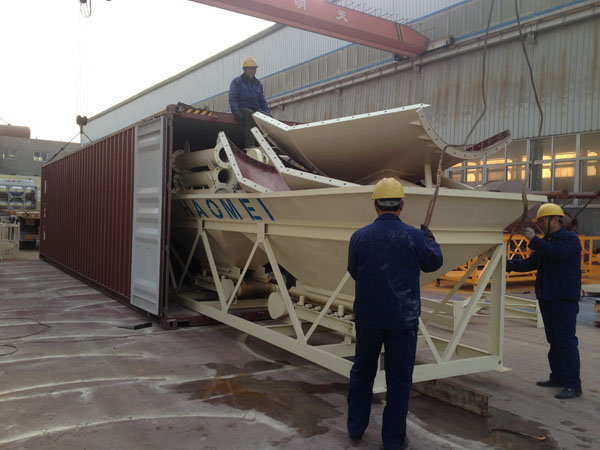

Packaging and Delivery of Haomei.

1. Standard seaworthy container 20 GP or 40 GP ,40 HQ according to configuration ;
2. With wires for fastening the machine and frame structure inside the container ;
3. The electric items and installation components packed with strong and standard packages.

  • Concrete-plant Packaging
  • Concrete-plant Packaging
  • Concrete-plant Packaging
  • Concrete-plant Packaging
