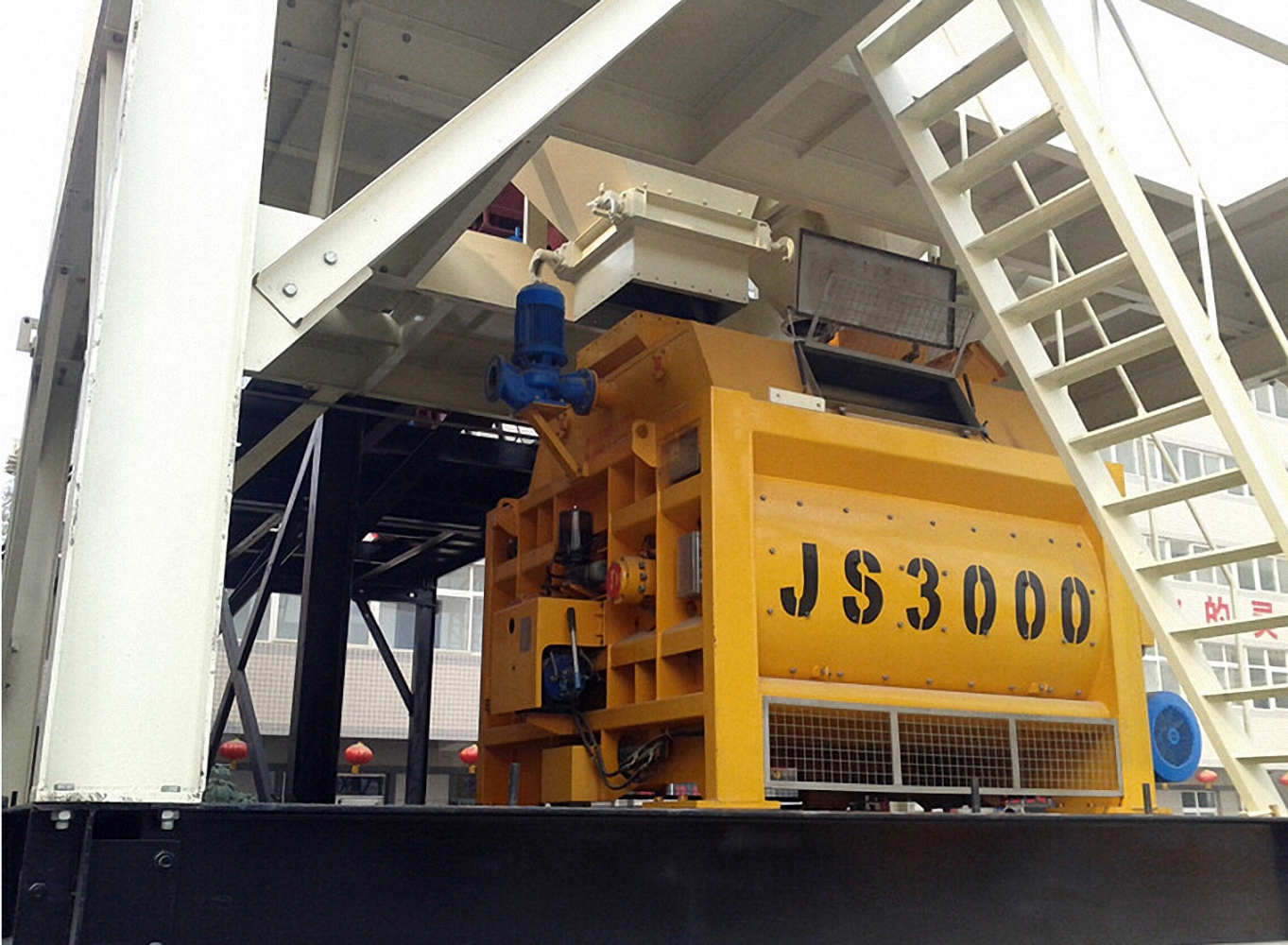

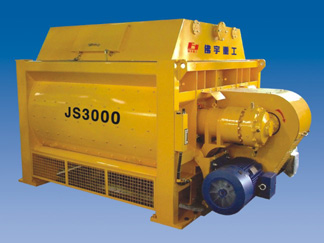

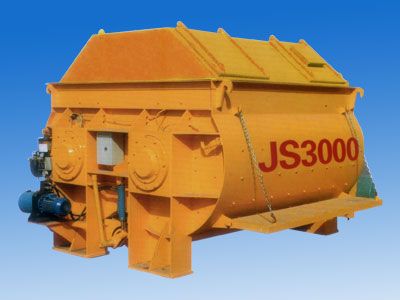

Add to Product Favorites JS3000 series compulsory twin shaft concrete mixer is a vital part of a large model concrete mixing plant, which is commonly used in mixing station.JS3000 concrete mixer can work independently and with PLD series batching machine
JS3000 is twin shaft horizontal forced type cement mixer. The cement mixer macine discharges three cube meters materials every time also known as the three-cube concrete mixer. It can mix dry hard concrete plastic concrete flowing concrete light weight aggregate concrete and various mortar. The cycle period is 60s when discharging. JS3000 is mainly used as mixer body for HZS180 concrete batching plant.
This series of products can not only be used as a stand-alone use but also be a mixing console to make up a concrete batching plants with series PL concrete batching machine.
This concrete mixer uses high-chromium and high-molybdenum scale boards and stirring pieces, with a long service time. Shaft seal is applied with patented air pressure seal, which can effectively prevent the leakage of mortars. Auto-lubrication system ensures the mixing system can operate continually for a long time. As a miniature double-horizontal-shaft forced type concrete mixer, this concrete mixing machine features short mixing time, good homogeneity and reliable operation. Shaft tip is sealed by floating-ring, which is reliable and easy to maintain and replace.
Specification |
Unit |
Value |
Discharging Volume |
L |
3000 |
Charging Volume |
L |
4800 |
Mixer Capacity |
m3 |
3.0 |
Lubrication System |
Brand |
Choosed |
Reducer |
Brand |
Choosed |
Aggregate Size |
mm |
60/80 |
Aggregate Compartments |
Quantity |
4 |
Working Circle |
S |
60S |
Mixer Motor Power |
KW |
2x55 |
Mixing Speed |
r/min |
33.5 |
Mixing Blade |
Quantity |
2x7 |
Lifting Motor Power |
KW |
25 |
Pump Motor Power |
KW |
3 |
Weight |
KG |
10100 |
Dimensions |
mm |
4250x2680x2150 |
1.This concrete mixer uses high-chromium and high-molybdenum scale boards and stirring pieces, with a long service time.
2. Shaft seal is applied with patented air pressure seal, which can effectively prevent the leakage of mortars.
3. Auto-lubrication system ensures the mixing system can operate continually for a long time.
4. Opening gates mechanism directed by hydraulic can adjust the opening angle of discharging door in accordance with the need, which effectively prevents overspill while discharging the finished materials into truck-mounted concrete mixers.
It is mainly used as mixer body for HZS180 concrete batching plants. It can be widely used in construction projects like buildings, roads, bridges, high way roads, docks, airport, water projects, hydropower station,etc. They can also be used in precast concrete factories and commercial concrete plant.
1. Standard seaworthy container 20 GP or 40 GP ,40 HQ according to configuration ;
2. With wires for fastening the machine and frame structure inside the container ;
3. The electric items and installation components packed with strong and standard packages.
