Product Overview

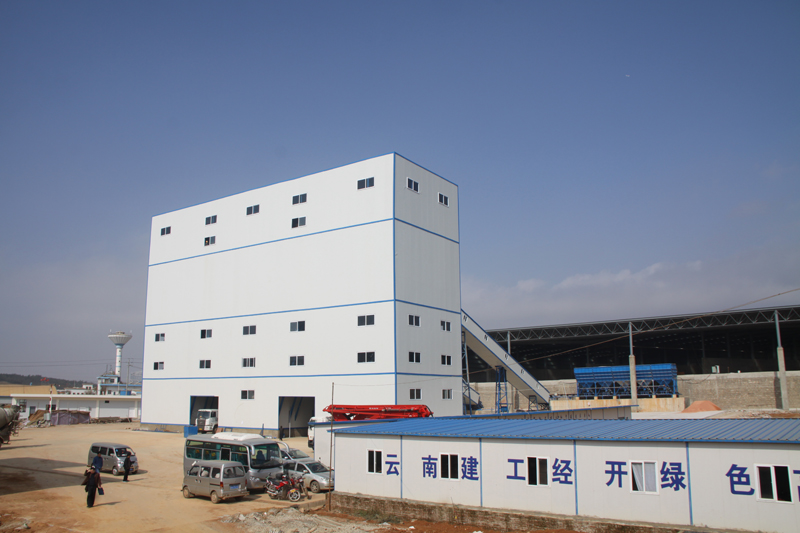

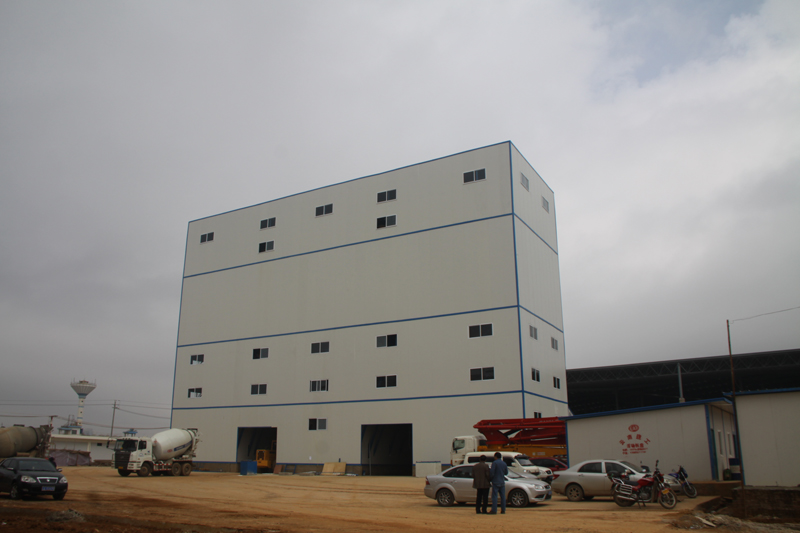

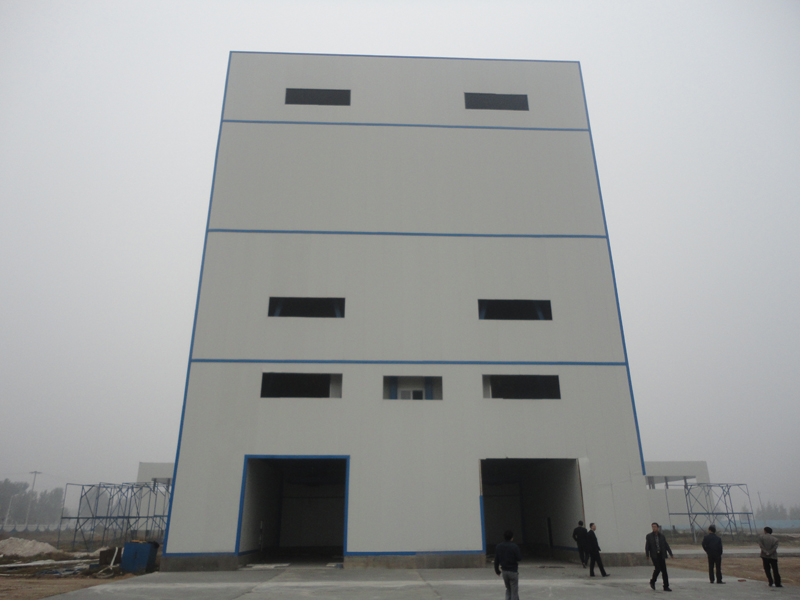

HZS180 Q3000 Concrete Batching Plant which is also called double HZS240 Concrete Batching Plant, produces 8 cubic meters(4m³x2) of concrete per batch. The automatic system makes it more flexible to arrange production tasks. The precise metering system ensures that the 2HZS240 can easily handle the task of producing high quality and high strength concrete.
HZS180-1Q3000 concrete batching plant developed based on the designing of HZS120-1Q2000 and HZS90-1Q1500 concrete batching plant of our company, and absorbed the advanced technology all over the world. It’s the most automatic and highest concrete batching plant of domestic.The concrete batching plant has the characteristics of Structure Simple, multiple functions, low cost.

1、Design production capacity
Normal concrete (pure mixing time to 30s count) 150-180m3/h
2、The ridge-type Hopper 4 bins
3、Italian SICOMA (Zhuhai) MAO4500/3000 type twin-shaft mixer 1Set
Feeding capacity 4500L
Dischargeing capacity 3000L
Power 2X55kw
4.Ingredients range and accuracy Dynamic accuracy
Aggregate scale（2Set） 3000kg ±2%
Sand scale（2Set） 3000kg ±2%
Cement scale 1800kg ±1%
Ash / slag 600kg ±1%
Water scale 800kg ±1%
Additive A1/A2 50kg ±1%
5、belt conveyor
Transmission capacity 900t/h
Band width 1000mm
Belt speed 2.5m/s
6、Gas pressure 0.6-0.7Mpa
GasConsumption 1.4m3/min
7、Control mode Electric centralized microcomputer automatic control
8、Total power 280KW

HZS180-1Q3000 Concrete batching plant spare parts

1 electric soldering iron
45W 1 set
2 universal meter
MF30 1 set
3 long flat nose pliers
160mm 1 set
4 wire stripping pliers
180mm 1 set
5 wire-cutter
165mm 1 set
6 slip-joint pliers
165mm 1 set
7 spanner 180mm 1 set
8 spanner 180mm 1 set
9 RING END RTTING 8 Set 1 set
10 pipe wrench
200mm 1 set
11 fitter's hammer
2kg 1 set
12 Components tool 6Sets 1 Set

Features

1. compact layout, man-machine engineering design.
2.Computer Automatic Control System, automatic for all the produce process include batching, weighing, mix, output. With the function that CRT color display, input and output Monitoring and prestore 200 types of batching. Make it reality that adjust before batching, automatic compensation for the owed weight, deduct the excess weight, and print, statistic, record etc. High automaticity, advanced technology, In the international leading level.
3.Equiped Italy MAO4500/3000 two-shaft concrete mixer.
4. The design of pneumatic system fully considered the stability and working life of the gas purification, oil mist dispose valve, cylinder layout, air filter, mist dispose, solenoid valve etc.
5.Used new type one sided color pressure plate, the color can be choosed.

Applications

The rated capacity of the concrete batching plant is 150-180m3/h (normal concrete), the concrete mixer is MAO4500/3000 twin-shaft concrete mixer, it can be used to produce the Low slump, harsh, plastic, Lightweight concrete and motar. The equipment is ideal for water conservancy, electricity, metallurgy, mine, ports, bridge, urban construction project etc. Especially ideal for the producing of urban commercial concrete.

Why Choose Haomei Machinery.

Reliability: 20 years of experiences in manufacturing concrete batching plants;
Markets:Obtain market sharing all over the world.
Equipment:Advanced cutting line to provide a wide range of specifications.
Production capacity:25 to 180m3/h.can be customized to meet any demand of the products raised by our customers.
Employees:Over 25 sale persons to provide good service for customers.
Responsibility: Engaged in charity donation and provide eco-friendly products.

Packaging and Delivery of Haomei.

1. Standard seaworthy container 20 GP or 40 GP ,40 HQ according to configuration ;
2. With wires for fastening the machine and frame structure inside the container ;
3. The electric items and installation components packed with strong and standard packages.

FAQ

what range size cement Silos you supply?
The regular size is 30T- 300T, and the biggest Bolted Type Silos can up to 1500T .
What kind of spare parts you supply?
All Batching plant parts, including mechanical processing parts, mixer wearing parts, pneumatic fittings, load cell, belt conveyor parts, roller, motors, bearings, electrical elements & cables, switch board and so on
What should I do if experiencing a problem on our batching plant?
Please email or call us what it happen, show us the symptom details and photos, then our engineer will guide you how to cover it. Our service line will be on line 24/7/365.
