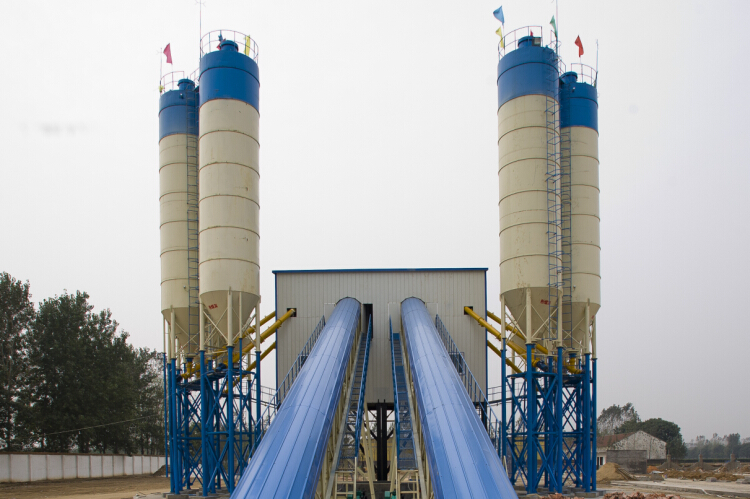

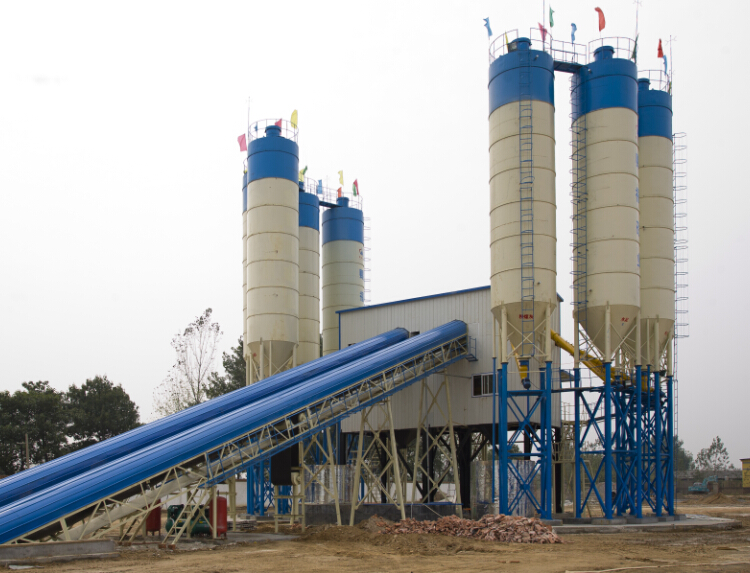

HZS120 Concrete Batching Plant

Download Product Manual (PDF file)
wade@haomei.biz Get samples and prices !

Cut to size at customers' need !

Add to Product Favorites
Share
Product Overview

HZS120 concrete batching plant is a large-scale stationary concrete batching plant with an output of 120 m3/h. It adopts JS2000 twin-shaft forced concrete mixer, which has high mixing capacity, short mixing time and uniform mixing performance. It is widely used in large-scale projects and is also an ideal equipment for producing commercial ready mix concrete.
HZS120 Concrete Batching Plant is equipped with JS2000 twin-shaft mixer and PLD3200 aggregate batcher. It can meet the high standard of concrete production. The fully automatic control system can add different concrete production formula and plan to achieve the needs of producing various grades of concrete.

Model HZS120
Specification Unit Value
Productivity m3/h 120
Capacity of Mixer m3 2
Mix Power kw 74
Discharge Height m 3.8
Aggregate Bin Quantity 4
Aggregate Bin Capacity m3 3.2
Max. Weighing Value of Aggregate kg 1500
Max. Weighing Value of Cement kg 1100
Max. Weighing Value of Water kg 1500
Max. Weighing Value of Additive kg 60
Aggregate Measuring Accuracy % ±2%
Water Measuring Accuracy % ±1%
Cement Measuring Accuracy % ±1%
Additive Measuring Accuracy % ±1%
Cement Silo _ Optional
Cement Screw Conveyor _ Optional
Cement Silo Capacity _ Optional
Control Mode _ Auto/Semi Control

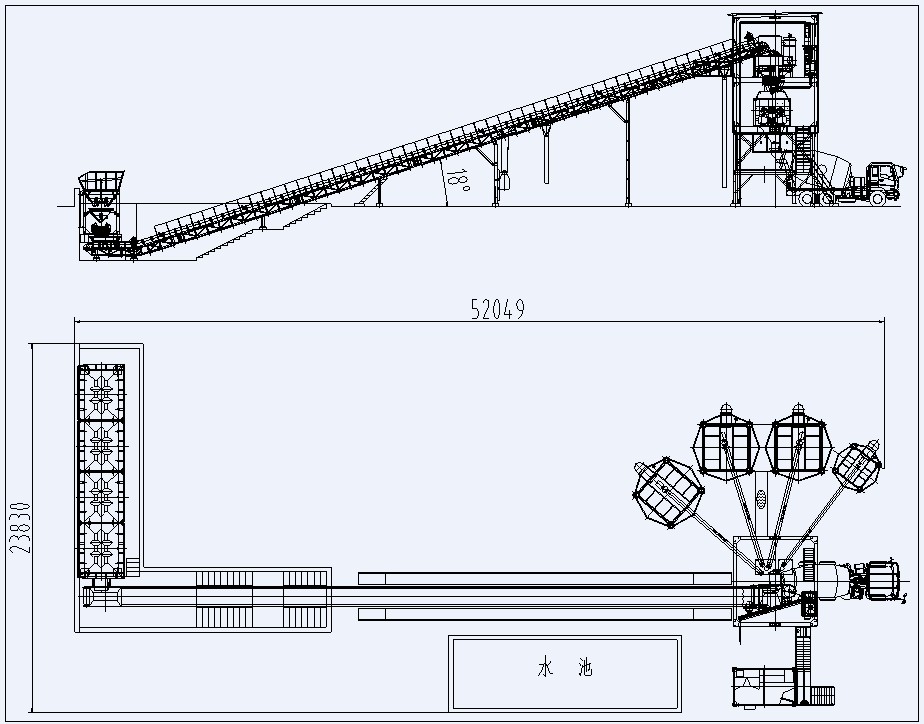

Drawing HZS120 Concrete Batching Plant Drawing Main characters

1.Easy to operate and convenient. Easy to install and dismantle. We can open the side packing to check and change the parts.
2.All the process of weighting, metering and conveying are in the close situation to avoid dust into other parts and protect the rnvironment.
3.Stable to run can reduce the noise. And the main mixing plant and conveyor are packed with environmental materials to protect the environment.
4.Using a modular structure, the removal of whole installation is very convenient, low cost.
5.Adopts JS2000 (JS2000B) twin-shaft forced type concrete mixer, good mixing quality and high efficiency.
6.Aggregate batching machine uses PLD3200 type ingredients, measurement accuracy, high production efficiency.
7.Cement, water, liquid additive ingredients are used in electronic scales of measurement, high dosing accuracy.
8.Water supply systems using pressurized water pump principle, so that the water flow speed, spray evenly.
9.Using the belt type to deliver aggregate material, long life and high efficiency.
10.The main components of the electrical control system are all imported, reliable performance, easy operation, the print function, with air conditioning.
11. All the materials adopts independent measurement scales, a scale with a table to improve the measurement accuracy;
12. Aggregate lifting belt machine used hanging type reducer which is running smoothly and powerful, easy to maintain;

Applications

The HZS120 concrete batching plant can be used as a commercial concrete plant to produce high quality concrete. It is a great choice for construction projects such as expressway, bridge, airport, railway and water conservancy projects.

Why Choose Haomei Machinery.
  • Reliability: 20 years of experiences in manufacturing concrete batching plants;
  • Markets:Obtain market sharing all over the world.
  • Equipment:Advanced cutting line to provide a wide range of specifications.
  • Production capacity:25 to 180m3/h.can be customized to meet any demand of the products raised by our customers.
  • Employees:Over 25 sale persons to provide good service for customers.
  • Responsibility: Engaged in charity donation and provide eco-friendly products.
Packaging and Delivery of Haomei.

1. Standard seaworthy container 20 GP or 40 GP ,40 HQ according to configuration ;
2. With wires for fastening the machine and frame structure inside the container ;
3. The electric items and installation components packed with strong and standard packages.

FAQ
  • 1. What is the price of an HZS120 concrete batching plant?
    The price of the concrete plant is affected by multiple factors, such as raw material cost, logistics transportation cost, labor cost, ect. In addition, the configuration of the concrete plant is adapted to the customer's demands. Due to different configuration, which means that the price is changed, so we are unable to provide online quotes. We will send you the configuration plan and quotation after you send us your requirements.
  • How about the installation and commissioning if i buy the HZS120 concrete plant?
    We will dispatch our after-sale service engineers to guide the installation, commissioning and training your operator on site. You should pay for round air ticket, board(meals), lodging expenses and a daily allowance of USD$100 per person per day for our service engineer.
  • what range size cement Silos you supply?
    The regular size is 30T- 300T, and the biggest Bolted Type Silos can up to 1500T .
  • What kind of spare parts you supply?
    All Batching plant parts, including mechanical processing parts, mixer wearing parts, pneumatic fittings, load cell, belt conveyor parts, roller, motors, bearings, electrical elements & cables, switch board and so on
  • What should I do if experiencing a problem on our batching plant?
    Please email or call us what it happen, show us the symptom details and photos, then our engineer will guide you how to cover it. Our service line will be on line 24/7/365.
