HZS150 Concrete Batching Plant

Download Product Manual (PDF file)
wade@haomei.biz Get samples and prices !

Cut to size at customers' need !

Add to Product Favorites
Share
Product Overview

On the basis of combining advantages of various foreign mixing buildings&stations and advanced technology, HZS150 adopts modular structure design, which maintains convenient installation& removal and safe, comfortable operation, with good mixing effect and high efficiency. Besides, it adpots PLC automatic logical program control and host computer all-time tracking management, with safe and reliable operation and more facilitate maintaining. With fully-closed tower, aggregate conveying system and dedusting system can effectively reduce environmental pollution arising from dust and noise.
HZS150 series of Concrete Batching Plant (Ready-mixed concrete mixing plant), also named as concrete batch plant, is developed by our company on the basis of adopting the world is sophisticated technologies, this concrete mixing plant have been widely used in the domestic and overboard, as well as earned a perfect reputations in the construction field, we have dedicated in manufacturing concrete mixing plant for many years.

Type

HZS150

Productivity in theory

150m³/h

Mixer

JS3000

Total power

205KW

Maximum aggregate diameter

80mm

Aggregate feeding method

Conveyor belt

Aggregate bins volume

4x18m³

Aggregate weighing

2x4000kg ±2%

Cement weighing

1800kg ±1%

Fly-ash weighing

800kg ±1%

Water weighing

800kg ±1%

Additive weighing

50kg ±1%

Discharging height

3.8m

Overall dimension(during operating)
(LXWXH)

58.5mX7mX12.9m

Total weight

77T

Control

Fully automatic central control

Cement silo(optional)

Required on clients' demand

Cement screw(optional)

Each cement silo equipped with one φ219 screw

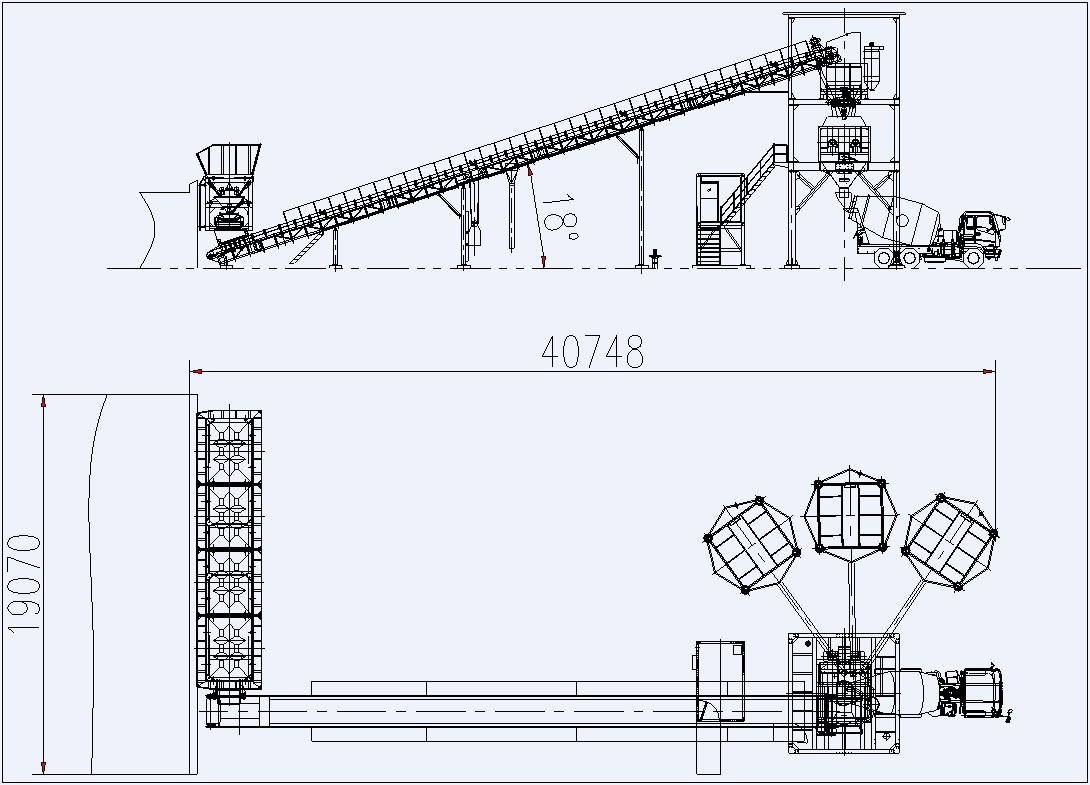

Drawing HZS150 Concrete Batching Plant Drawing Features

1. Modularized structure, quick and convenient for conveying, installing and debugging;
2. Excellent efficiency, with actual productivity up to 130-150m3/h;
3. Precise measurement meets requirements of various high-performance concrete;
4. Main mixer with 4 patented technologies;
5. PC plus PLC control system ensures high reliability;
6. Monitoring system and data management system with dual displayers, clear at a glance;
7. Humanized intelligent control system is simple for operation;

Applications

HZS150 concrete batching plant is composed of batching, mixing, electrical control and other parts of the full automatic concrete mixing equipment. It is suitable for medium and large construction project. like Dam, Highway, Railway, Subway, Flyover, sea port, air port and so on.

Why Choose Haomei Machinery.
  • Reliability: 20 years of experiences in manufacturing concrete batching plants;
  • Markets:Obtain market sharing all over the world.
  • Equipment:Advanced cutting line to provide a wide range of specifications.
  • Production capacity:25 to 180m3/h.can be customized to meet any demand of the products raised by our customers.
  • Employees:Over 25 sale persons to provide good service for customers.
  • Responsibility: Engaged in charity donation and provide eco-friendly products.
Packaging and Delivery of Haomei.

1. Standard seaworthy container 20 GP or 40 GP ,40 HQ according to configuration ;
2. With wires for fastening the machine and frame structure inside the container ;
3. The electric items and installation components packed with strong and standard packages.

FAQ
  • 1. What is the price of an HZS150 concrete batching plant?
    The price of the concrete plant is affected by multiple factors, such as raw material cost, logistics transportation cost, labor cost, ect. In addition, the configuration of the concrete plant is adapted to the customer's demands. Due to different configuration, which means that the price is changed, so we are unable to provide online quotes. We will send you the configuration plan and quotation after you send us your requirements.
  • Why Choose JINSHENG 150 m³/h Belt Type Ready Mixed Stationary Concrete Batching Plant?
    Aggregate batching system adopts PLD4800 concrete batcher which offers efficient and accurate measurement. concrete mixer which offers high quality and efficient mixing. Adopt combined structure and modular unit, convenient to install and remove.
  • what range size cement Silos you supply?
    The regular size is 30T- 300T, and the biggest Bolted Type Silos can up to 1500T .
  • What kind of spare parts you supply?
    All Batching plant parts, including mechanical processing parts, mixer wearing parts, pneumatic fittings, load cell, belt conveyor parts, roller, motors, bearings, electrical elements & cables, switch board and so on
  • What should I do if experiencing a problem on our batching plant?
    Please email or call us what it happen, show us the symptom details and photos, then our engineer will guide you how to cover it. Our service line will be on line 24/7/365.
