HZS60 Concrete Batching Plant,JS1000 Concrete Mixer Plant -haomei machinery-

Product Overview Features and Applications Strength Packaging and Delivery

Product Overview

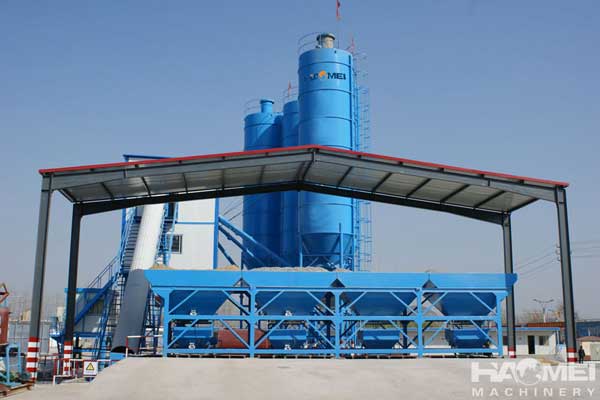

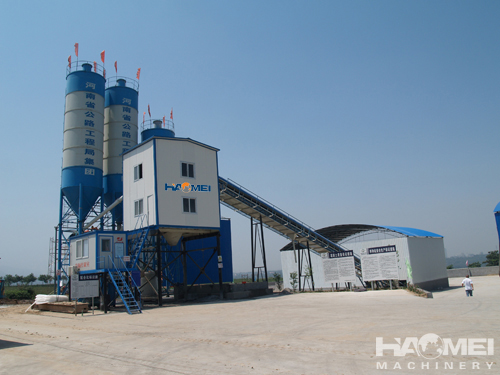

HZS60 small concrete batching plant ( Belt conveyor ) is mainly used in mixing and architectural fields to make concrete for real-estate buildings, bridges, overpass, port terminals, dam construction and prefabricated building, other places of concrete construction and building highway, urban road, airport runway paving construction sites and so on. Compared with HZS50 price of concrete batching plant, this professional concrete batching plant belongs to belt type to deliver the materials, and it is commercial ready mix concrete batching plant for sale.
Our HZS60 concrete batching plant is forced type high efficiency concrete production equipment. It suits for mixing dry hard, half dry hard, plastic, and other ratios of concrete with features of high production efficiency, high mixing quality, stable and reliable, long lifespan etc. The plant has various operational modes as fully automatic, semi-automatic and manual and so, a high degree of automation.
HZS60 concrete batching plant is a welcomed model in the batching plants, because it has medium output capacity, high mixing efficiency, medium capital investment and great profit. Then here is brief explanation of HZS60 concrete batching plant specification.

Model	HZS60
Specification	Unit	Value
Productivity	m3/h	60
Capacity of Mixer	m3	1
Mixer Power	kw	37
Discharge Height	m	3.8(for customers choice)
Aggregate Bin	Quantity	3
Aggregate Bin Capacity	m3	1.6
Max. Weighing Value of aggregate	kg	1000
Max. Weighing Value of cement	kg	800
Max. Weighing Value of water	kg	350
Max. Weighing Value of additive	kg	30
Aggregate Measuring Accuracy	%	2
Water Measuring Accuracy	%	1
Cement Measuring Accuracy	%	1
Additive Measuring Accuracy	%	1
Cement Silo	_	Optional
Cement Screw Conveyor	_	Optional
Cement Silo Capicity	_	Optional
Control Mode	_	Auto/Semi control

Drawing

Features

1) The Mixing System: the mixer is JS1000B twin shaft forced type which has high mixing evenness for concrete, short mixing time, long lifespan for wearing parts, easy operation and maintenance advantages. Mixer driven is by double motor and double speed reducer. 4 m discharging height. Adjustable hydraulic discharging door angle. High Wear-Resistant Chromium-Manganese Alloys Plates and Blades. Perfect shaft end sealing system effectively prevents leakage and guarantees the continuous long running of whole mixing system.
2) Batching System: using PLD1600 batching machine. The batching aggregates can be 3-5types. 7m3 Basic Storage Bins Volume，1600L Weighing Bins Volume，Full Capacity, 7.5kw Motor, Belt width of 800mm.
3) The feeding system: feeding is of closed belt type by continuous feeding, the belt is of china famous brand and the idler is troughed type, with belt tensioning system and cleaning system, guaranteeing the feeding efficiency and effectively longer the equipment lifespan.
4) The digital weighing system is with buffering device, auto compensation function and very high weighing accuracy. The sensors for the weighing system are of China Famous Brand with assured high weighing accuracy and stability.
5) We use the international advanced full auto control models of integration industry computer or normal full auto SIMENS PLC+PC model. It is with features of Strong Anti-Interference Ability, High Reliability And Stability, Easy Operation And Maintenance, Zero-Failure Rate.
6) All Motors, Speed Reducers, Sensors are of China Famous Brand.
7) 28 National Technical Patents Guarantee Excellent Performance.
8) Modular Design, Space-Saving Integrated Design, Easy Installation and Removal.
9) Aesthetics Designed, the Color and Painted Words can be Customerized Designed by the Buyer.
10) Low Noise and Dust for Your Environmental Protection Requirement Enough.
11) China Well-known Trademark, Brand Protected by Paris Convention for the Protection of Industry Property

Applications

HZS60 Concrete Batching Plant adopts JS1000 twin-shaft mixer, transporting aggregate by belt conveyor. Its productivity is 60 cubic meters per hour. Generally, it produces dry and hard, semi-dry hard, plastic concrete. This concrete plant has the features of high efficiency, accurate measurement and long service life, which is widely used in roads, bridges, water conservancy, railways, etc. Moreover, it is suitable for the construction of commercial concrete plants and precast concrete plants.

On site service of engineering concrete batching plant:

We will dispatch 1 technician to your place to guide the installation, testing and training your operator. Buyer to pay for round air ticket, board (meals), lodging expenses and a daily allowance of USD$100 per person per day for our service engineer.

Normally it will take 10-15 working days to finish the installation and commissioning of 60m3 wet concrete batching plant.

Why Choose Haomei Machinery.

Reliability: 20 years of experiences in manufacturing concrete batching plants;
Markets:Obtain market sharing all over the world.
Equipment:Advanced cutting line to provide a wide range of specifications.
Production capacity:25 to 180m3/h.can be customized to meet any demand of the products raised by our customers.
Employees:Over 25 sale persons to provide good service for customers.
Responsibility: Engaged in charity donation and provide eco-friendly products.

Packaging and Delivery of Haomei.

1. Standard seaworthy container 20 GP or 40 GP ,40 HQ according to configuration ;
2. With wires for fastening the machine and frame structure inside the container ;
3. The electric items and installation components packed with strong and standard packages.

FAQ

1. What is the price of an HZS60 concrete batching plant?
The price of the concrete plant is affected by multiple factors, such as raw material cost, logistics transportation cost, labor cost, ect. In addition, the configuration of the concrete plant is adapted to the customer's demands. Due to different configuration, which means that the price is changed, so we are unable to provide online quotes. We will send you the configuration plan and quotation after you send us your requirements.
What is the configuration of HZS60 concrete plant?
Batching machine and mixing console is essential equipment for each set of concrete mixing station, HZS60 concrete mixing station chooses JS1000 concrete mixer! and PLD1600 batching machine, and in addition, cement silo, screw conveyor, air compressor, the control room, and the aggregate conveying system are all included, its supporting facilities are complete. But for hzs60 batching plant capacity!60 is not big, so in general, it is not closed. if the customer has special requirements, we will customize for you
What is the different between HZS50 and HZS60 concrete plant?:
HZS50 and HZS60 concrete batching plant are equipped with JS1000 compulsory concrete mixer, concrete mixer is the main equipment to distinguish the type of mixing station, but also an important factor in price differences. HZS50 and HZS60 concrete batching plant in addition to feeding in different ways, other configurations are the same. This is based on the customer's production requirements to the actual distinction. If the customer wants slightly larger output of the concrete batching plant, while the venue is relatively large, you can use a large angle belt loading, built HZS60 concrete batching plant,the hourly production can reach 55m3 or more, and if the client's own venue is limited, You can consider the construction of a HZS50 concrete batching plant, the same can meet the requirements, and the equipment use of bucket feeding way, small footprint, can save construction space, to help you use a small site to achieve the value of large use.
