HZS90 Concrete Batching Plant

Download Product Manual (PDF file)
wade@haomei.biz Get samples and prices !

Cut to size at customers' need !

Add to Product Favorites
Share
Product Overview

HZS90 Continuous Concrete Batching Plant With its modularization structure, HZS Ready Mix Concrete Batching Plant is easy to transport, install and debug more quickly.HZS90 concrete batching plant with the theoretical productivity of 90m³/h is also called 1.5-cubic-meter concrete batching plant.It is simplified economical mixing equipment combining advantages of mixing building and batching plant, as well as advanced technologies.HZS90 concrete batching plant saves money at the most on the basis of ensuring project efficiency, and is greatly reliable. The modular structure design makes installation and removal more convenient, and the operation is safe, comfortable and reliable.
HZS90 Concrete Batching Plant adopts JS1500 twin-shaft mixer, transporting aggregates with belt conveyor. It is equipped with PLD2400 aggregate batcher with 4 bins, which can meet the high standard of ready mix concrete production. The fully automatic control system not only controls the production process of each process, but also adds different concrete production formula to meet the needs of producing various grades of concrete.

Model HZS90
Specification Unit Value
Productivity m3/h 90
Capacity of Mixer m3 1.5
Mix Power kw 44
Discharge Height m 3.8
Aggregate Bin Quantity 4
Aggregate Bin Capacity m3 2.4
Max. Weighing Value of Aggregate kg 1300
Max. Weighing Value of Cement kg 1100
Max. Weighing Value of Water kg 500
Max. Weighing Value of Additive kg 40
Aggregate Measuring Accuracy % ±2%
Water Measuring Accuracy % ±1%
Cement Measuring Accuracy % ±1%
Additive Measuring Accuracy % ±1%
Cement Silo _ Optional
Cement Screw Conveyor _ Optional
Cement Silo Capacity _ Optional
Control Mode _ Auto/Semi Control

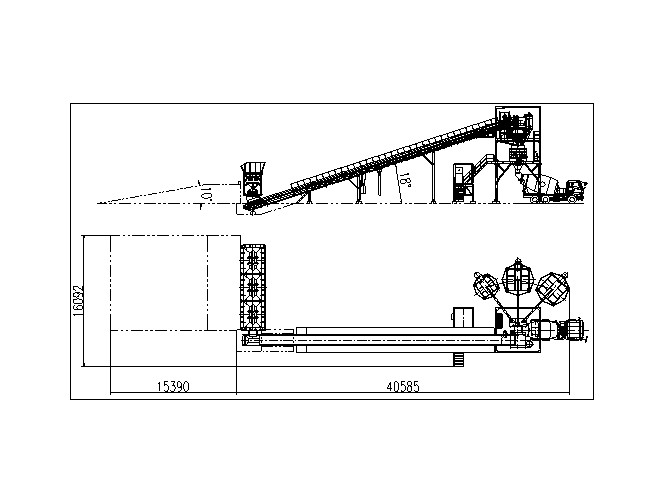

Drawing HZS90 Concrete Batching Plant Drawing Features

1. Driving system adopts planetary gear, the gimbals transmission shaft insures circumgyrate at the same speed
2. Mixing system choose the spiral mixing system , which has high efficiency , scale board and mixing blades adopts high-rigidity and high tenacity wearable case alloy steel, to prolong the working life.
3. Aggregate lifting appliance adopts frequency control, thus providing smooth and reliable operation.
4. Lubrication system adopts advanced centralized oil lubricating system, convenient for oil supplying, this system is equipped with overvoltage warning and low oil level warning, safe and reliable
5. PC+PLC control system ensures the high reliability.

Applications

This type of machine is widely used in road and bridge engineering, airport construction, railway engineering, water conservancy projects, etc. At the same time, it can be used as medium-sized commercial concrete plants, precast concrete plants and so on.

Why Choose Haomei Machinery.
  • Reliability: 20 years of experiences in manufacturing concrete batching plants;
  • Markets:Obtain market sharing all over the world.
  • Equipment:Advanced cutting line to provide a wide range of specifications.
  • Production capacity:25 to 180m3/h.can be customized to meet any demand of the products raised by our customers.
  • Employees:Over 25 sale persons to provide good service for customers.
  • Responsibility: Engaged in charity donation and provide eco-friendly products.
Packaging and Delivery of Haomei.

1. Standard seaworthy container 20 GP or 40 GP ,40 HQ according to configuration ;
2. With wires for fastening the machine and frame structure inside the container ;
3. The electric items and installation components packed with strong and standard packages.

FAQ
  • 1. What is the price of an HZS90 concrete batching plant?
    The price of the concrete plant is affected by multiple factors, such as raw material cost, logistics transportation cost, labor cost, ect. In addition, the configuration of the concrete plant is adapted to the customer's demands. Due to different configuration, which means that the price is changed, so we are unable to provide online quotes. We will send you the configuration plan and quotation after you send us your requirements.
  • How about the installation and commissioning if i buy the HZS90 concrete plant?
    We will dispatch our after-sale service engineers to guide the installation, commissioning and training your operator on site. You should pay for round air ticket, board(meals), lodging expenses and a daily allowance of USD$100 per person per day for our service engineer.
  • what range size cement Silos you supply?
    The regular size is 30T- 300T, and the biggest Bolted Type Silos can up to 1500T .
  • What kind of spare parts you supply?
    All Batching plant parts, including mechanical processing parts, mixer wearing parts, pneumatic fittings, load cell, belt conveyor parts, roller, motors, bearings, electrical elements & cables, switch board and so on
  • What should I do if experiencing a problem on our batching plant?
    Please email or call us what it happen, show us the symptom details and photos, then our engineer will guide you how to cover it. Our service line will be on line 24/7/365.
