HZS25 Concrete Batching Plant

Download Product Manual (PDF file)
wade@haomei.biz Get samples and prices !

Cut to size at customers' need !

Add to Product Favorites
Share
Product Overview

HZS25 Concrete Batching Plant consists of the mixing system, batching system, metering system and control system. It adopts JS500 concrete mixer with 0.5 m³ per batch. This batching plant transports aggregate with skip hoist, which saves the footprint and enhances land utilization. The HZS25 Batching Plant is equipped with PLD800 aggregate batcher with 2 or 3 bins. According to customers' actual demands.Haomei machinery configures fully automatic, semi-automatic or manual control systems. The fully automatic control system adopts computer control to realize automatic control, production management and report printing of the production process

Model

HZS25

Specification

Unit

Value

Productivity

m3/h

25

Capacity of Mixer

m3

0.5

Mixer Power

kw

18.5

Discharge Height

m

3.8(for customers choice)

Aggregate Bin

Quantity

3

Aggregate Bin Capacity

m3

0.8

Max. Weighing Value of aggregate

kg

1500

Max. Weighing Value of cement

kg

300

Max. Weighing Value of water

kg

150

Max. Weighing Value of additive

kg

40

Aggregate Measuring Accuracy

%

2

Water Measuring Accuracy

%

1

Cement Measuring Accuracy

%

1

Additive Measuring Accuracy

%

1

Cement Silo

_

Optional

Cement Screw Conveyor

_

Optional

Cement Silo Capicity

_

Optional

Control Mode

_

Auto/Semi control

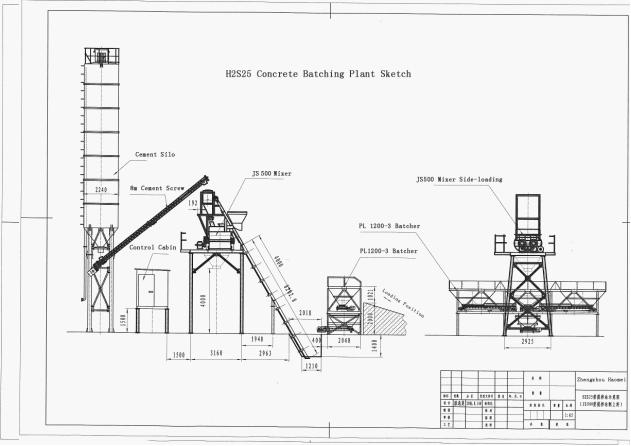

Drawing Drawing HZS25 Concrete Batching Plant Features

1.Adopt modular structure, installation and relocation is very convenient.
2.Using JS double shaft concrete mixer with PLD series concrete batching machine, accurate measurement and mixing of good quality and high production efficiency.
3.It can produce various kinds of concrete including quaking concrete and hard concrete, with high produce efficiency.
4.The overall structure is compact and fashionable, the layout is reasonable.
5.The operation is safe and reliable, its more easy to maintain

Applications

This series of concrete batching plant adopts modular structure, it is specially designed for customers who need to change the construction site frequently. It is simple in installation, compact in structure, place saving and high automation. It is mainly used for bridge, building, water conservancy project, power and other infrastructure projects.It is particularly suitable for small and medium-sized or temporary projects, prefabricated parts factories, brick factories and so on.

Why Choose Haomei Machinery.
  • Technologies:Top polishing technology guarantees good luster and smooth surface.
  • Markets:Obtain market sharing all over the world.
  • Equipment:Advanced cutting line to provide a wide range of specifications.
  • Production capacity:25 to 180m3/h.can be customized to meet any demand of the products raised by our customers.
  • Employees:Over 25 sale persons to provide good service for customers.
  • Responsibility: Engaged in charity donation and provide eco-friendly products.
Packaging and Delivery of Haomei.

1. Standard seaworthy container 20 GP or 40 GP ,40 HQ according to configuration ;
2. With wires for fastening the machine and frame structure inside the container ;
3. The electric items and installation components packed with strong and standard packages.

  • Concrete-plant Packaging
  • Concrete-plant Packaging
  • Concrete-plant Packaging
  • Concrete-plant Packaging
